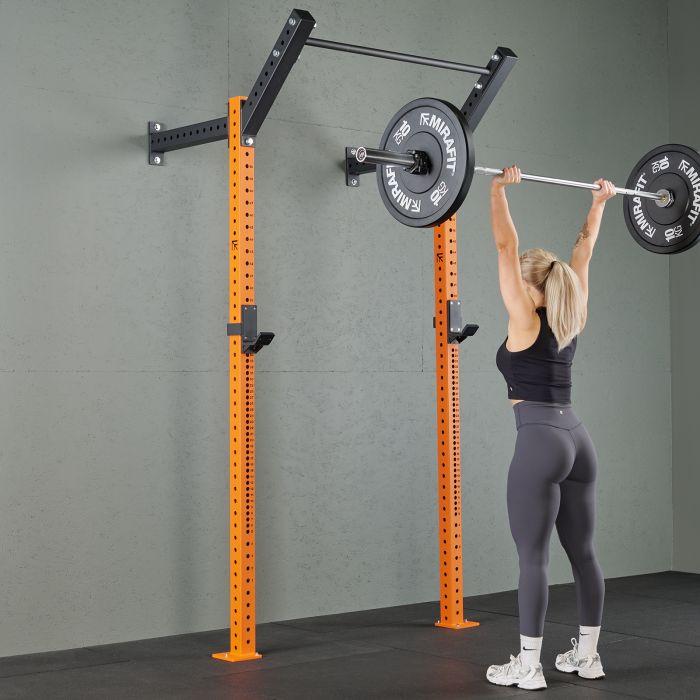

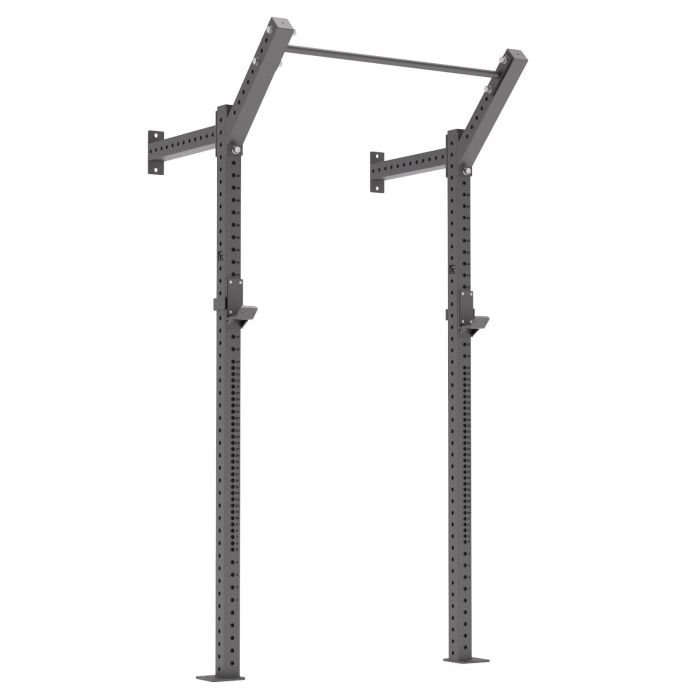

Mirafit M4 Wall Mounted Power Rack

• Mirafit M4 Wall Mounted Power Rack

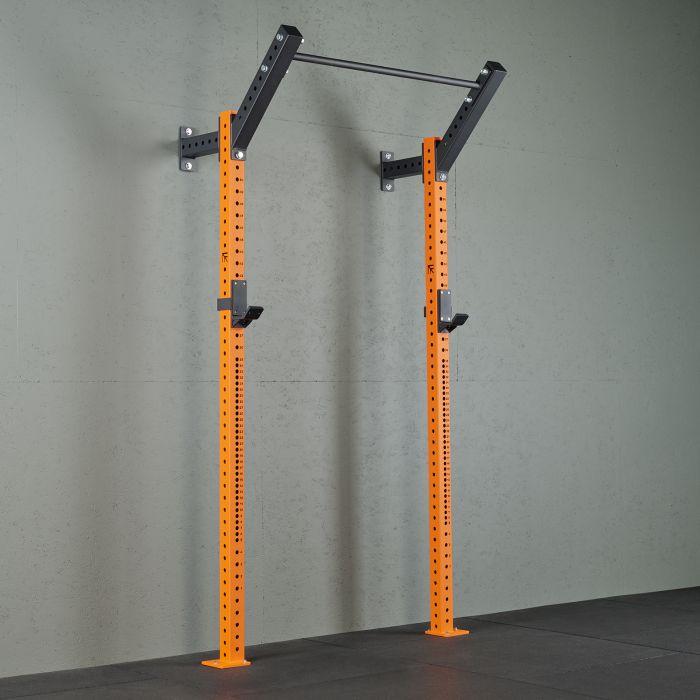

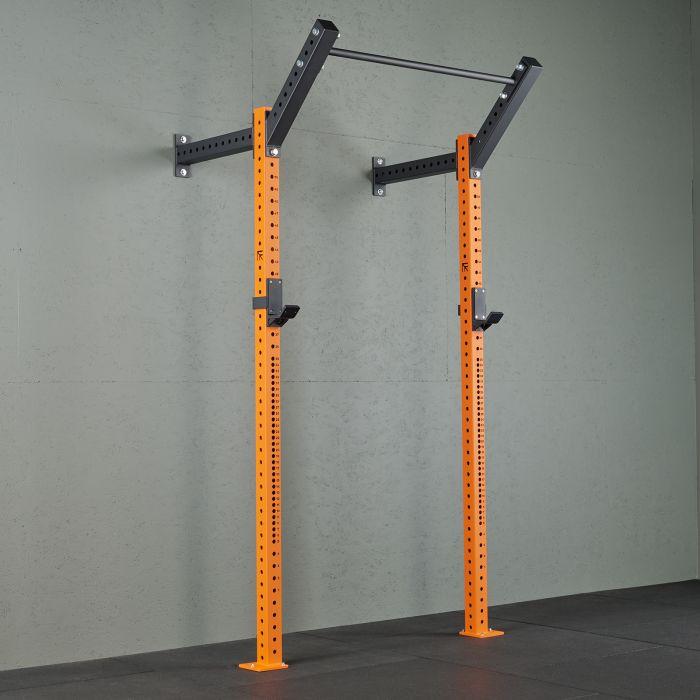

• This wall mounted squat rack shares the same fantastic specification as the rest of the M4 series, but in a space saving wall mount design
• Suitable for use in commercial gyms and lifting clubs
• Available in a choice of height and depth

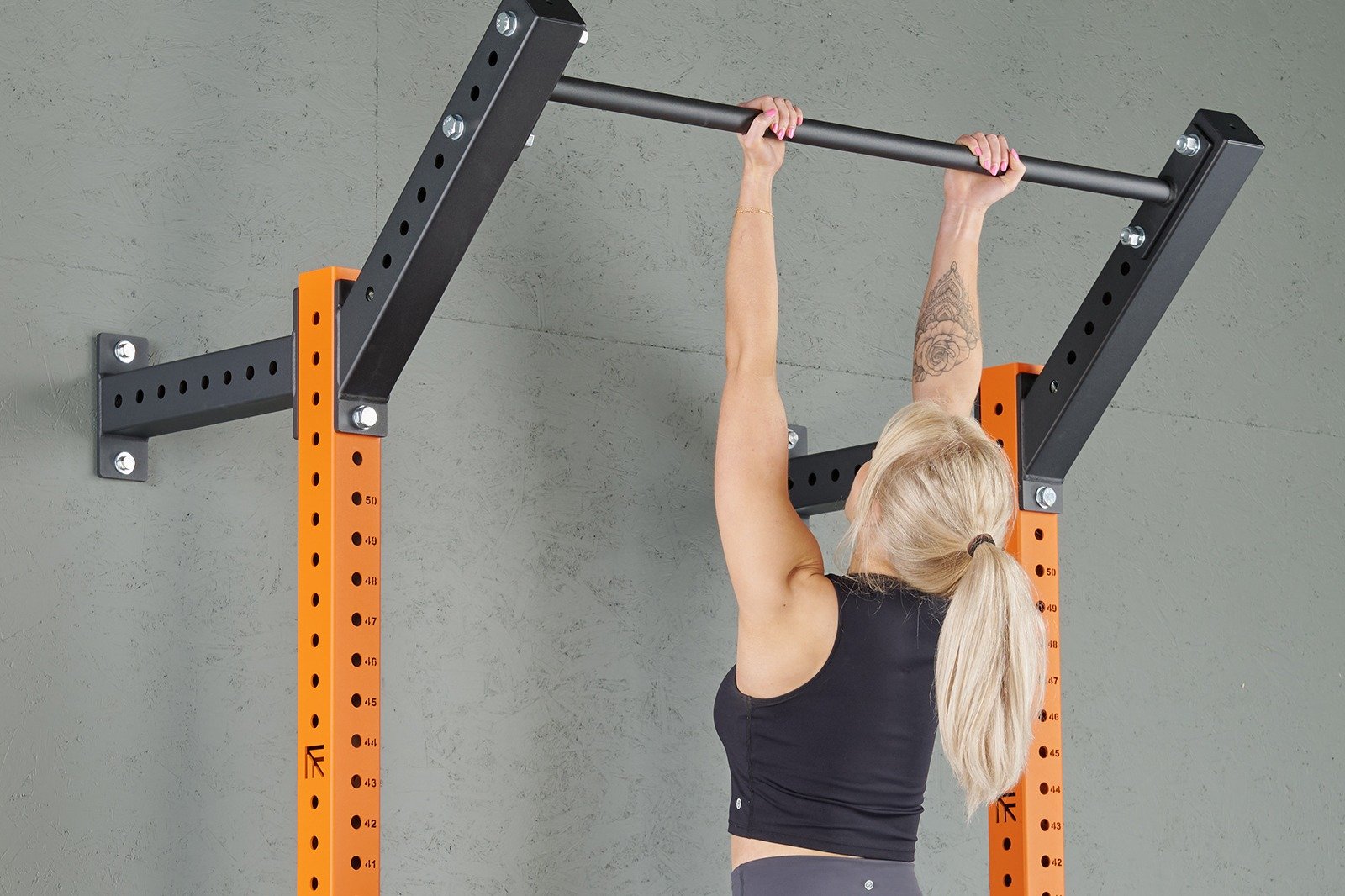

• Pull up bar is supplied with front mounted risers which increase height and distance from the wall, giving more room for exercises
• The pull up bar can be installed at a range of heights on the risers, or leave the risers off and install directly between the uprights
• Please note the heights quoted in the selection menu are the heights of the uprights. For total height including risers please see measurements below
• Rack includes nylon lined j-cups to prevent barbells being scuffed
• Laser-cut numbers on the front and back of each upright at every level for ease of use
• Heavy duty 75mm x 75mm x 3mm (11 gauge) steel frame
• 17.5mm hole size compatible with a range of M4 power rack attachments
• West side hole spacing allows precise height adjustment with 1 inch spacing through the bench press area and 2 inch throughout
• Heavy duty foot plates with pre-drilled holes for bolting down

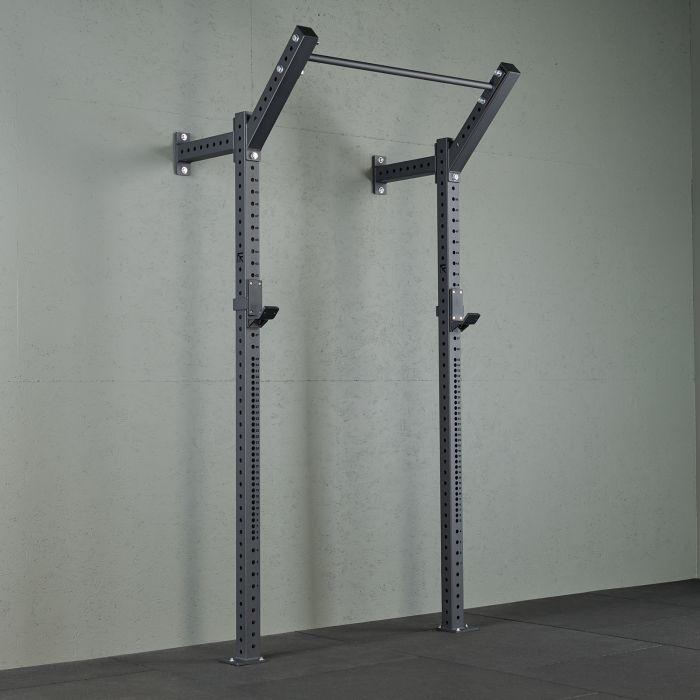

• Available with two or four wall bars

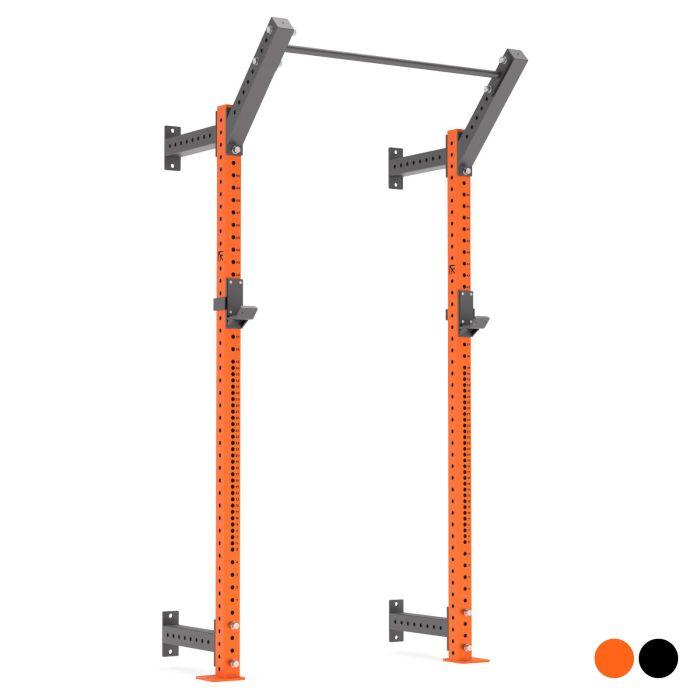

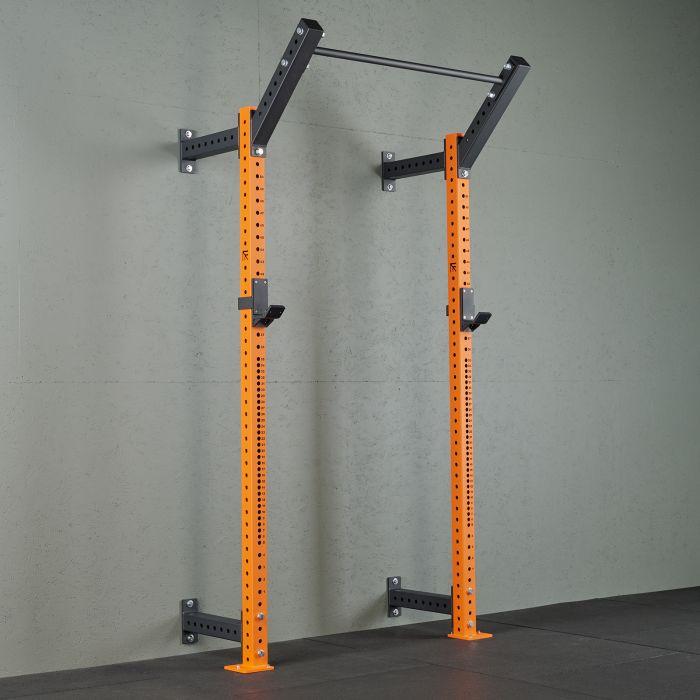

• Four bar option adds two wall bars at the bottom for additional strength and stability
• 32mm diameter pull up bar without knurling

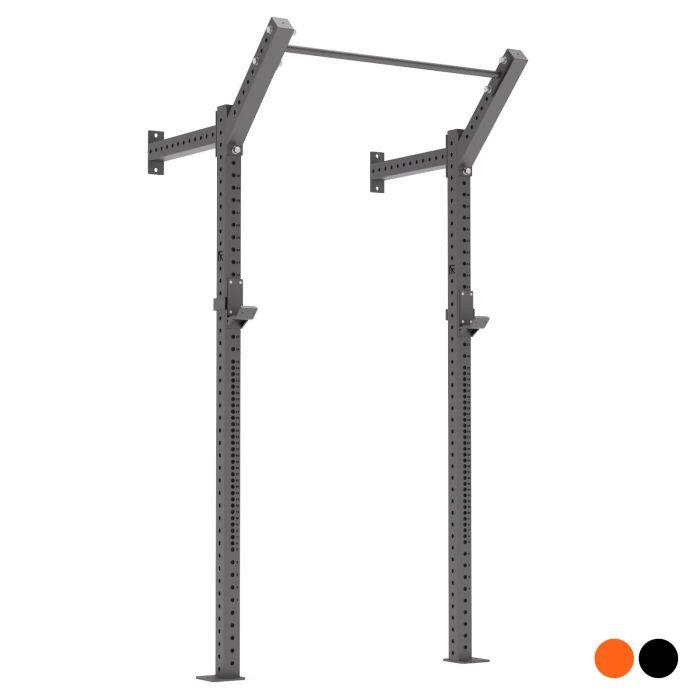

• Choice of black or orange powder coated finish
• Choice of height:
• 205cm (81") (total height with risers installed is 234cm)
• 230cm (91") (total height with risers installed is 259cm)
• Choice of internal depth:
• 30cm (total depth is 42cm including feet)
• 45cm (total depth is 57cm including feet)
• 61cm (total depth is 72cm including feet)
• Width: 122cm (excluding feet) / 136cm (including feet)

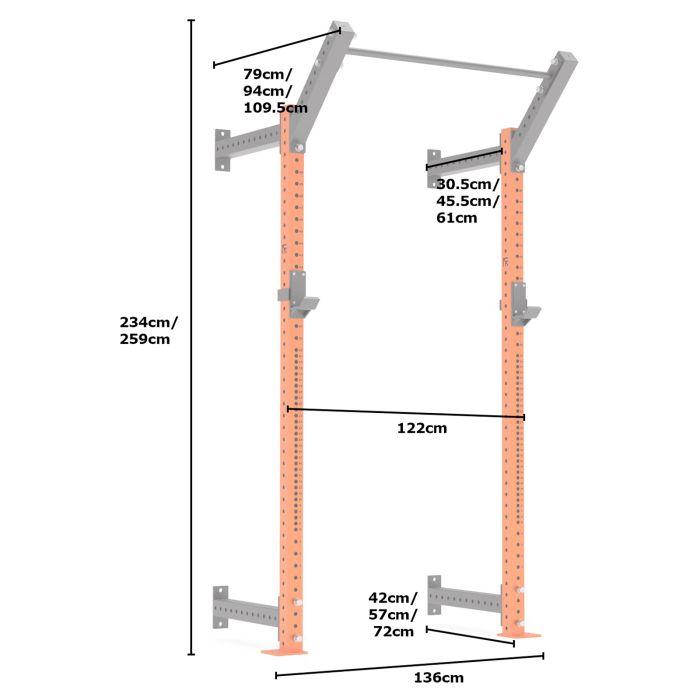

• Please refer to measurements image for further dimensions

Important Information

• It is essential that the wall and floor this product is fitted to are strong enough to withstand the forces that occur during use and that suitable fixings are used
• Wall and floor fixings are not included as the fixings required will vary according to the wall and floor type
• The wall bars are pre-drilled with 17.5mm diameter holes
• The foot plates are pre-drilled with 13mm diameter holes
• We recommend consulting with a builder or surveyor prior to installation
• Please note spotter arms and other attachments will add additional stresses to the wall. You must ensure a builder or surveyor confirms the wall is strong enough prior to use
• It is recommended to have three people on hand for assembly & installation of this product

Delivery & Assembly

• This product is delivered in multiple boxes
• The courier will often not deliver all of the boxes at the same time. Please wait at least 48 hours for the other boxes to arrive before contacting us
• Assembly instructions are included
• Please note: tools required for assembly are not included but are available here
