• Mirafit M3 Gym Cable Machine
• Can be installed freestanding or fixed to a suitable wall or rack
• Available in plate loaded design or with 100kg weight stack
• Plate loaded machine is suitable for use with Olympic weight plates and bumper plates
• Weight stack machine includes 100kg pin selected weight stack with 5kg weight increments
• The machine can be mounted to a suitable wall or bolted directly to the Mirafit M3 or M4 Power racks (see rack compatability guide below)
• The freestanding machine is the same as the wall/rack mounted machine but also includes an additional upright for the rear of the machine which enables it to be used freestanding
• Strong M3 spec design with 60mm x 60mm x 3mm steel box sections
• Premium stainless steel adjustment rail
• Adjustment rail has 33 height adjustments with 17mm holes spaced at 50mm intervals
• Also compatible with various M3 attachments allowing the functionality of the machine to be extended (see list below)
• Durable hard chrome guide rods
• Pulley weight ratio is 2:1
• Includes 2 -1 pulley adaptor with swivel shackle
• Using the 2 -1 adaptor switches the machine to a 1:1 weight ratio
• Includes 2 adjustable strap handles
• Suitable for use with a range of other cable attachments inc curl bars, tricep ropes and more (sold here)
• The machine can also be bolted to the floor for extra stability (floor fixings not included). This is always recommended and is essential for the freestanding version of the machine.
• Foot plates are pre-drilled with 13mm diameter holes (compatible with the M3 Floor Fixing Kit available here)
• Commercial grade pulley rollers

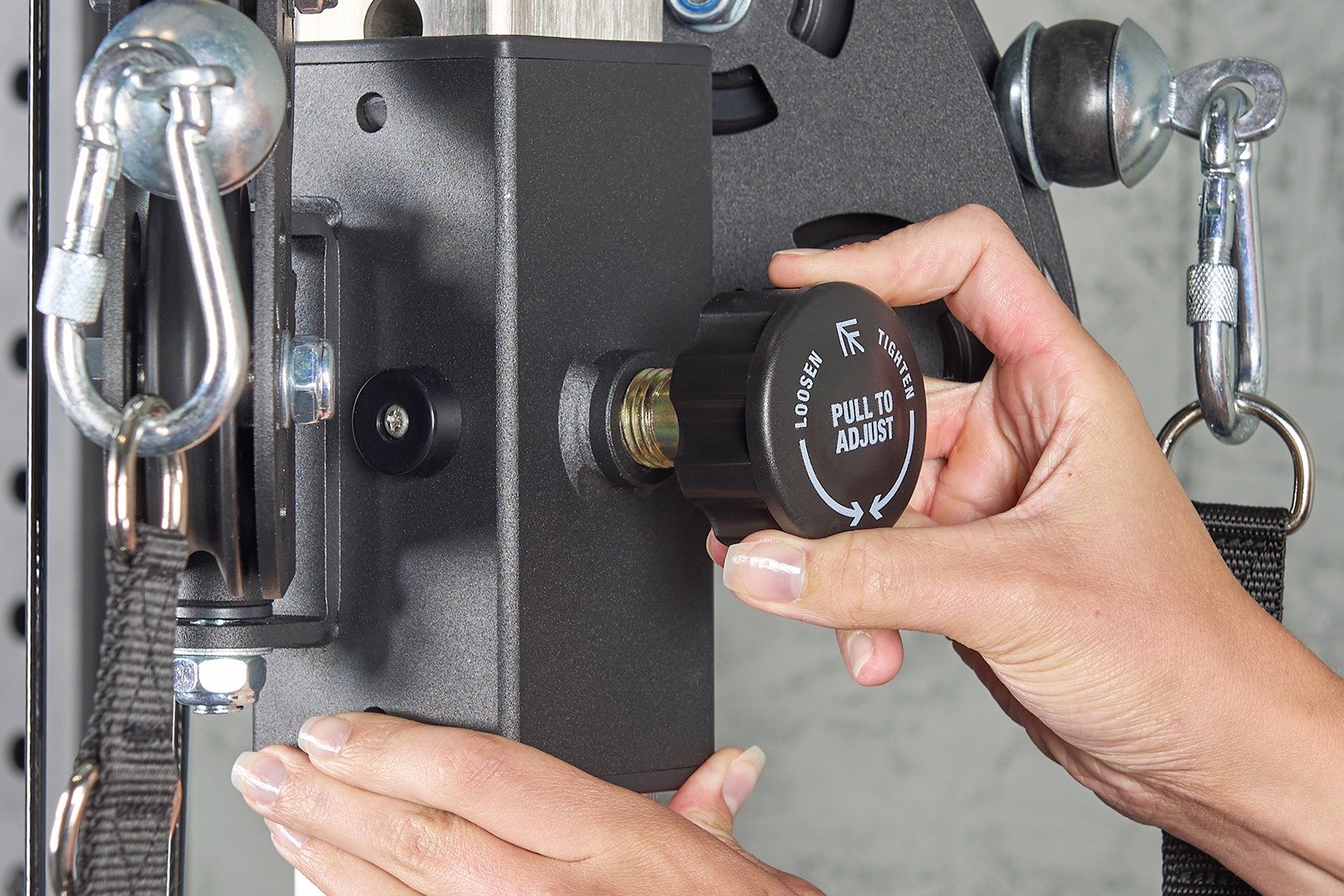

• Quick release adjustment rail knob
• High quality 3M stickers indicate the selected weight on the weight stack version
• Weight stack version also includes aluminium magnetic adjustment pin on the weight stack
• Wall fixing arms are high enough to clear standard skirting boards
• Measurements (wall mounted/freestanding):
  • Overall Height: 216.5cm/214.5cm
  • Overall Width: 74cm
  • Overall Depth 83/76cm
  • Sleeve Length: 22cm

Rack Compatability Guide

• M3 Power Rack - Direct fitment to 228cm and 208cm versions (includes required bolts). Not compatible with 188cm height.
• M4 Power Rack, M4 Half Power Rack & M4 Rig - Suitable but will require longer bolts as the included M3 bolts are not long enough due to the larger box sections on the M4 rack. A pack of 4 x M16 x 120mm bolts is available here.
• M4 Flat Foot Power Rack & Tall Squat Rack - Not suitable as connection arm will fowl on triangle brace plate
• M1 /M100 Series - Not compatible. Use freestanding version.
• M2 / M200 Series - Not compatible. Use freestanding version.

Which attachments can be used with the rack?

• M3 Dip Bar
• M3 Landmine
• M3/M4 Belt Squat Arm
• M3 Nordic Curl (must be bolted down)
• M3 Rack Mounted Massage Roller
• M3 Wrist Roller
• 60mm Seated Row Foot Plate

Delivery & Assembly

• The plate loaded version of the machine will be delivered in 3 boxes by parcel courier. Please note the courier may not deliver the boxes at the same time. Please wait at least 48 hours for the other boxes to arrive before contacting us
• The weight stack version of the machine will be delivered via pallet. Delivery will kerbside only. Please note that you will be required to safely dispose of the pallet/crate.
• Assembly instructions are included
• Assembly requires two each of 17mm, 19mm and 24mm spanners/sockets (not included)
• Weight stack version requires the weight indicator stickers to be stuck onto the weight stack. We recommend using masking tape in order to mark out a straight line
• We recommend bolting the machine down to the floor for maximum stability. For the freestanding version of the machine this is essential. For rack mounting this is recommended but may not be essential if the rack is already bolted down. For wall mounting this is recommended but may not be essential depending on wall strength. We recommend consulting with a qualified builder or surveyor prior to installation
• To reduce friction apply a lubricating oil such 3in1 oil to the rollers and slide rail. This will help the moving parts to slide more freely.
