M4 Off-Rack Storage

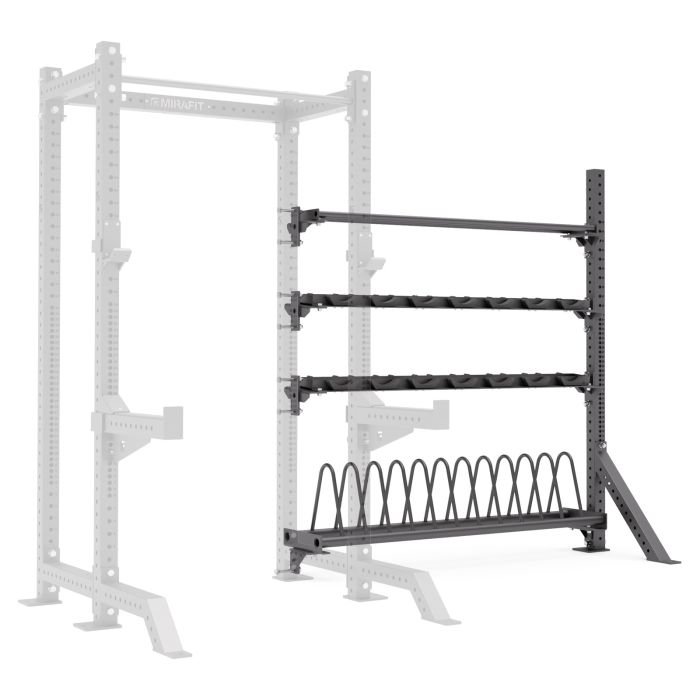

Mirafit M4 Off-Rack Storage
Adds storage bays to an existing Mirafit M4 Power Rack
Modular design can be attached to either side of the rack and extended with additional bays
Choice of 107cm or 178cm wide shelves
Available with four shelf configurations to suit a range of gym weights and accessories
Config 1 includes one toaster rack, two round dumbbell shelves and one rail shelf
Config 2 includes one toaster rack, two hex dumbbell shelves and one rail shelf
Config 3 includes one flat/kettlebell shelf, two hex dumbbell shelves and one rail shelf
Config 4 includes one flat/kettlebell shelf, two round dumbbell shelves and one rail shelf
Upright height is 205cm tall on all options
Includes angled front stabilizer bar for the upright
Heavy duty foot plates which are pre-drilled with 13mm holes for bolting down (floor bolts not included)
This system is part of our M4 Modular storage family. Additional components can also be purchased here
Please see measurements image for overall measurements when fitted to the M4 rack
Specifications:
- Rail Shelf
  - For medicine balls, sandbags, wall balls and other accessories
  - 107cm / 178cm width
  - 26cm depth
  - 120kg / 180kg max weight capacity
- Round Dumbbell Shelf (with saddles)
  - 5 degree angle for easy racking/unracking
  - Each dumbbell slot can support up to 60kg dumbbell
  - 107cm / 178cm width
  - 27cm depth
  - Holds 4 dumbbells / 7 dumbbells
  - 250kg / 400kg max weight capacity
- Hex Dumbbell Shelf
  - Installs at an angle for easy dumbbell access
  - Central ridge to stop dumbbells moving
  - Note: due to the small head size, for dumbbells under 5kg, the handle will rest on the central lip of the shelf, rather than the dumbbell head resting on shelf
  - 107cm / 178cm width
  - 38cm depth
  - 250kg / 350kg max weight capacity
- Flat Shelf (for kettlebells or gym accessories)
  - Installs flat for kettlebells and other accessories
  - Rubber pad protects equipment from scratches
  - 107cm / 178cm width
  - 31cm depth
  - 200kg max weight capacity
- Toast Style Weight Plate Rack
  - Designed to accommodate bumper plates or similar diameter weight plates
  - Note: this shelf must be installed at the bottom
  - 107cm / 178cm width
  - 38cm depth
  - 7 / 13 plate slots
  - 96mm wide slots
  - 300kg / 400kg max weight capacity
