What ceiling height do I need for the Mirafit M200S Short Power Rack?

The M200S has an overall height of 183cm (6ft). We recommend allowing extra clearance above the rack during assembly and for performing pull-ups. It is a rack designed specifically for garages and home gyms with lower ceilings.

What room size do I need for the M200S power rack?

The rack footprint is 147cm wide and 141cm deep. You should also allow extra space around the rack for loading plates, bench positioning and comfortable movement during training.

Who is the M200S Short Power Rack best for?

The M200S is ideal for home gym users with restricted ceiling height, garage gyms, garden rooms and smaller training spaces who still want a heavy-duty power rack.

What is the difference between the M200S and the standard M200 power rack?

The M200S uses shorter uprights and stands at 183cm tall, whereas the standard M200 (https://mirafit.co.uk/mirafit-m200-power-rack.html) is taller at 220cm. If ceiling height is not an issue, the standard version may provide more overhead clearance.

Is the M200S suitable for beginners and experienced lifters?

Yes. The adjustable J-cups and safety spotters make it suitable for beginners learning lifts safely and experienced users training with heavier weights.

Is the M200S suitable for tall users?

This depends on your height and training style. Taller users may find overhead movements and bar re-racking during squats more restrictive due to the lower overall height. The M200S is short power rack designed for rooms where ceiling height is limited. If your room is tall enough then the regular M200 rack is usually a better option.

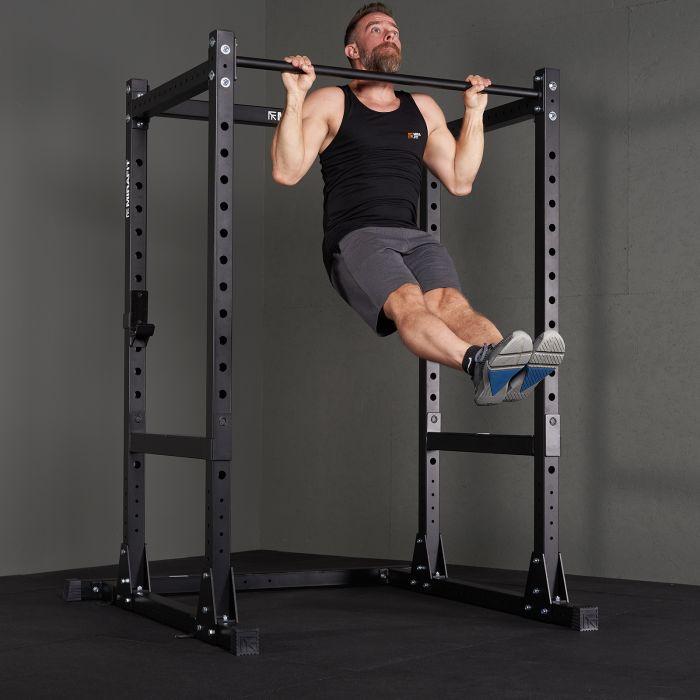

Can I perform pull-ups on the M200S?

Yes, the rack includes a pull-up bar. However, taller users or those with lower ceilings should check available headroom before use.

What barbells fit the M200S Short Power Rack?

The rack is suitable for 6ft international and 7ft barbells. Standard 6ft barbells are not suitable due to rack width.

Which attachments are compatible with the M200S?

The M200S is compatible with a range of M200 attachments (https://mirafit.co.uk/strength-equipment/power-rack-attachments/m200-attachments.html) including storage poles, pull-up and training accessories. Compatibility varies by attachment, check out our M2 Compatibility Guide (https://mirafit.co.uk/m2-rack-compatibility-guide/).

Can I add a cable system to the M200S?

No. The cable pulley system is not compatible with this rack.

M200S Short Power Rack

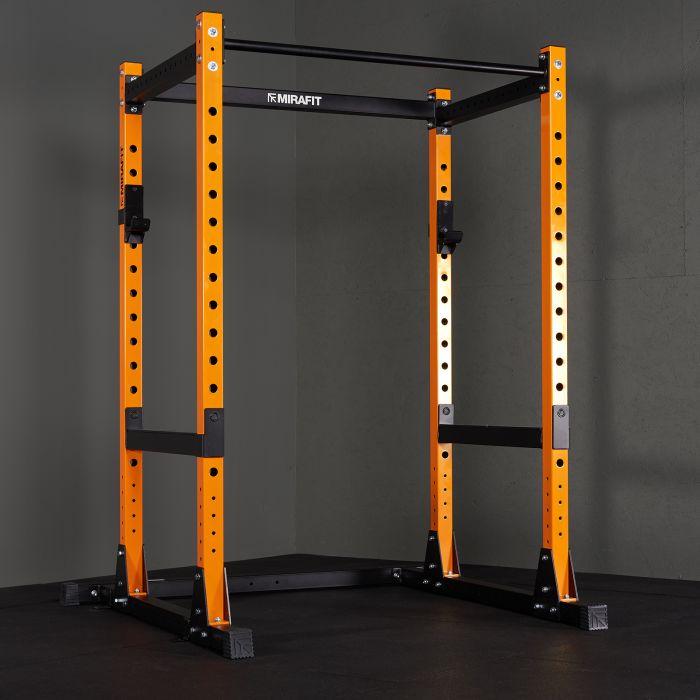

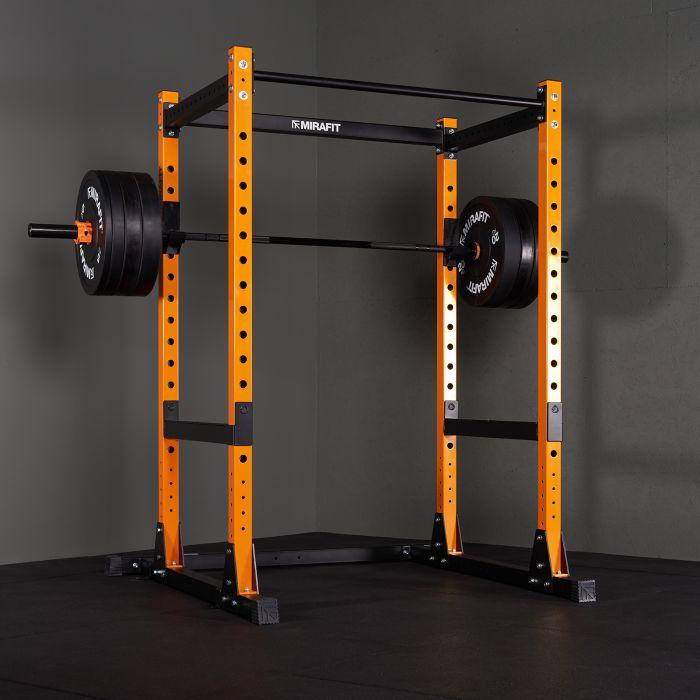

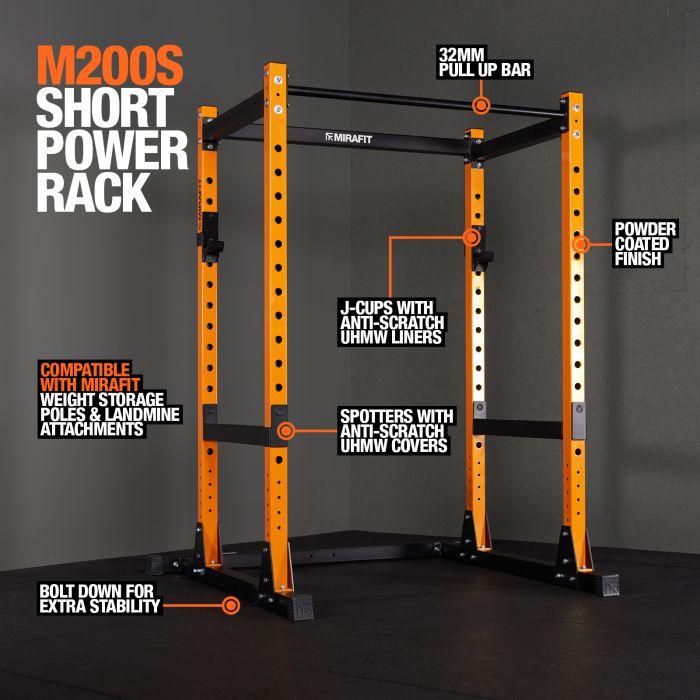

Mirafit M200S Short Power Rack
With an overall height of just six feet tall this rack is ideal for garages or rooms with low ceilings
The rack features the same fantastic spec as our regular M200, just with shorter uprights
For customers who have no height limitations we recommend the standard M200. Please see notes below in relation to usability

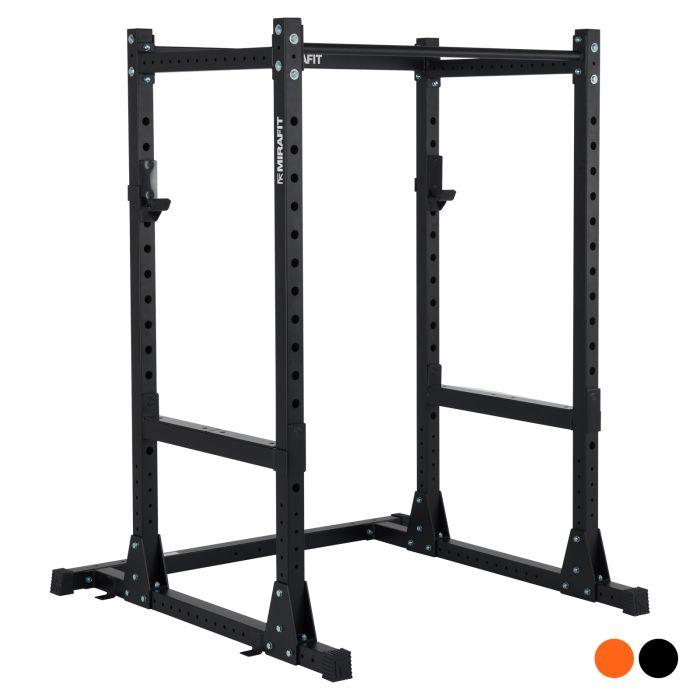

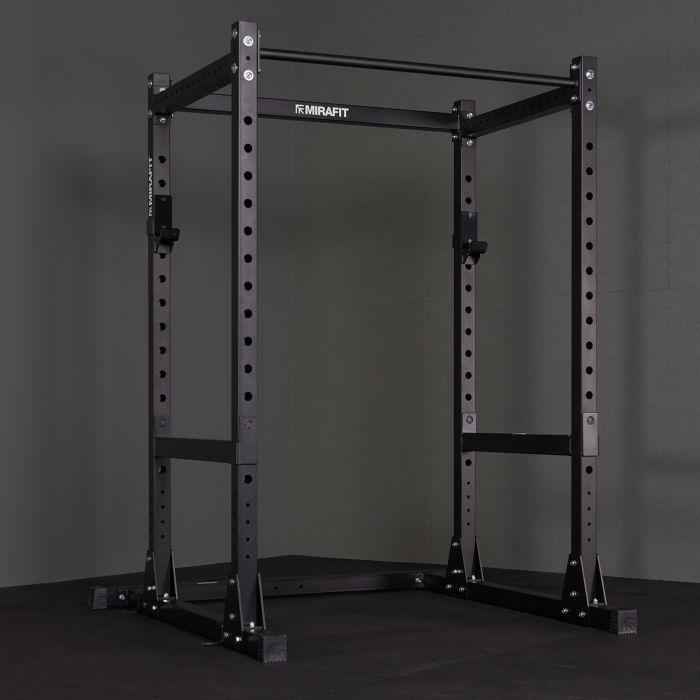

Powder coated finish in a choice of black or orange

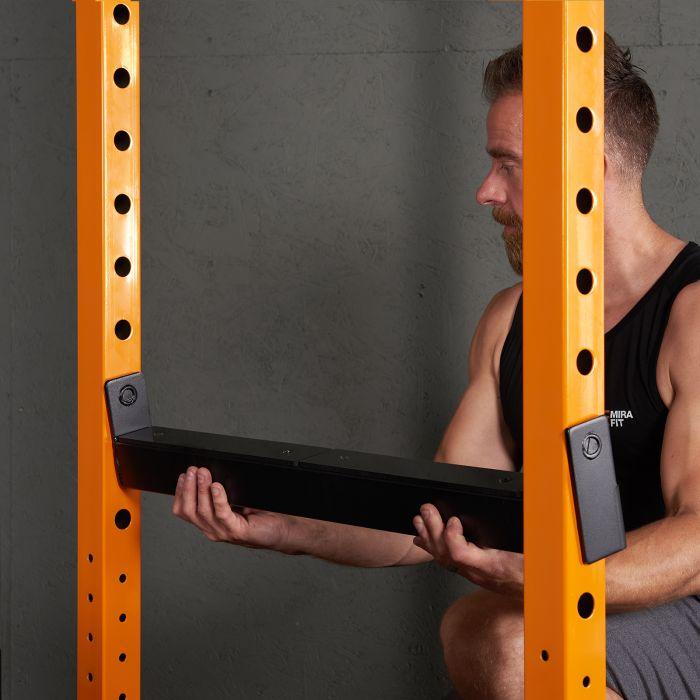

Full length safety spotters with UHMW liners - protects against barbell damage

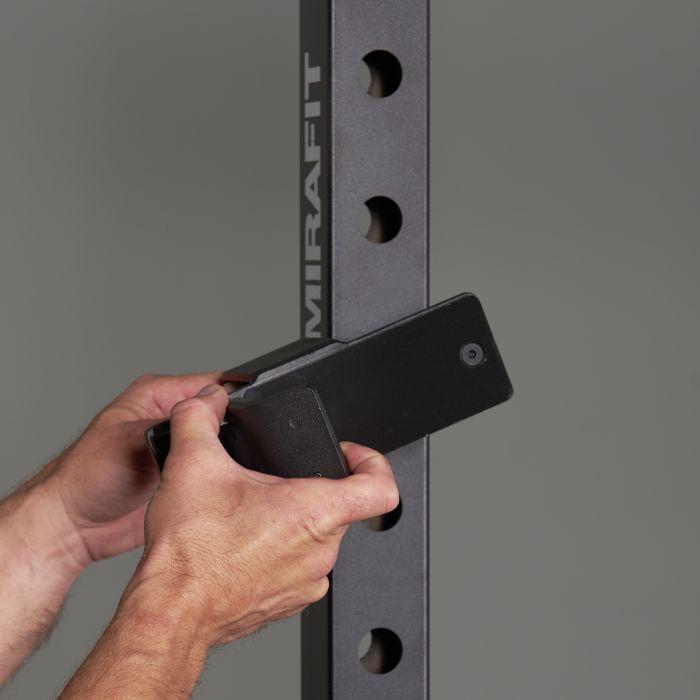

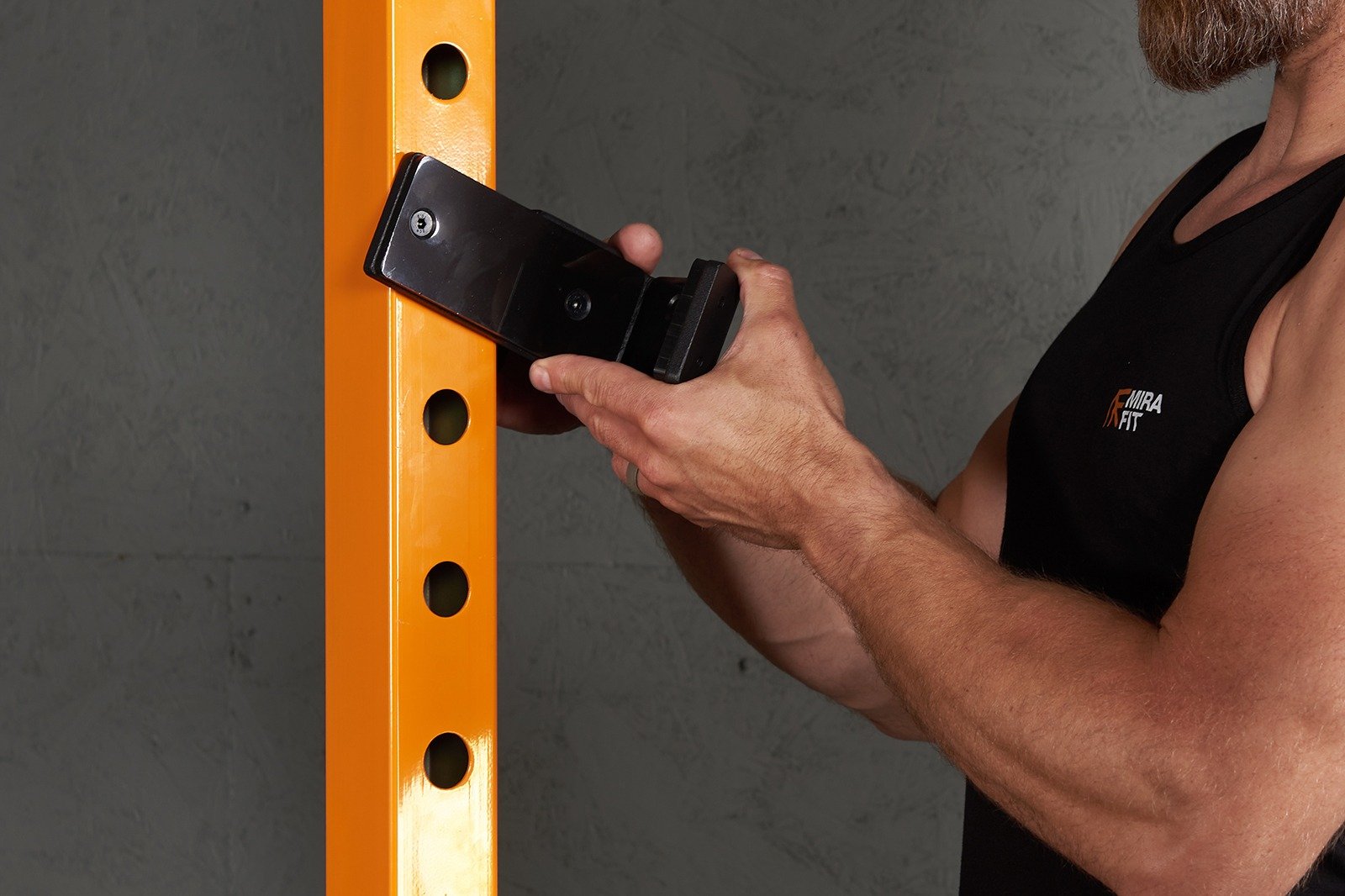

J-Cups with UHMW liners
Strong 60mm x 60mm steel frame
Steel thickness ranges from 2mm right up to 6mm
6mm thick steel brace plates on all uprights
Fully adjustable - 14 levels
1" diameter holes spaced at 8cm intervals
Bolt down feet for extra stability

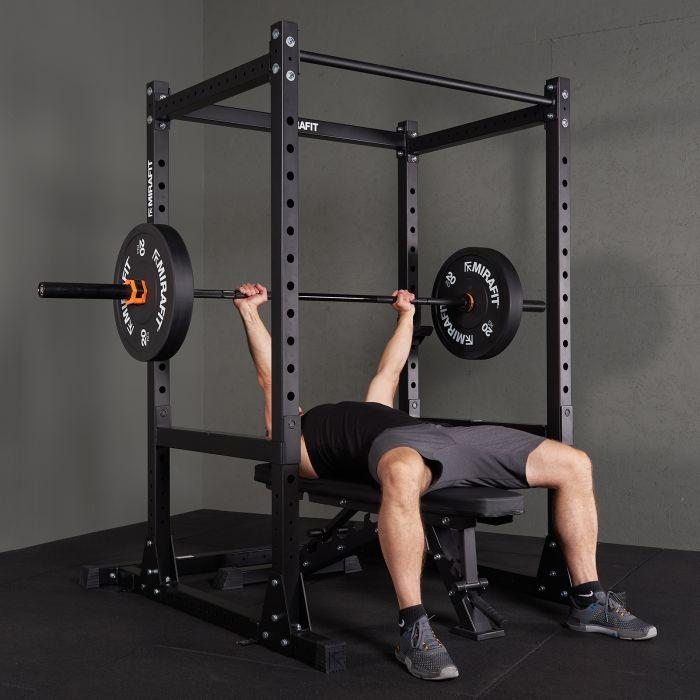

Rear base bar position provides increased room for weight bench positioning within the cage
Straight grip pull up bar
Pull up bar diameter: 32mm with matt black finish.
Suitable for use with a 7ft or 6ft international barbell. Please note this cage is too wide for a standard 6ft barbell
Compatible with a range of attachments (see below)
The foot plates are pre-drilled with 11mm diameter holes but floor fixings are NOT included and will vary depending on your floor type. For masonry floors we recommend our Floor Fixing Kit (sold separately)

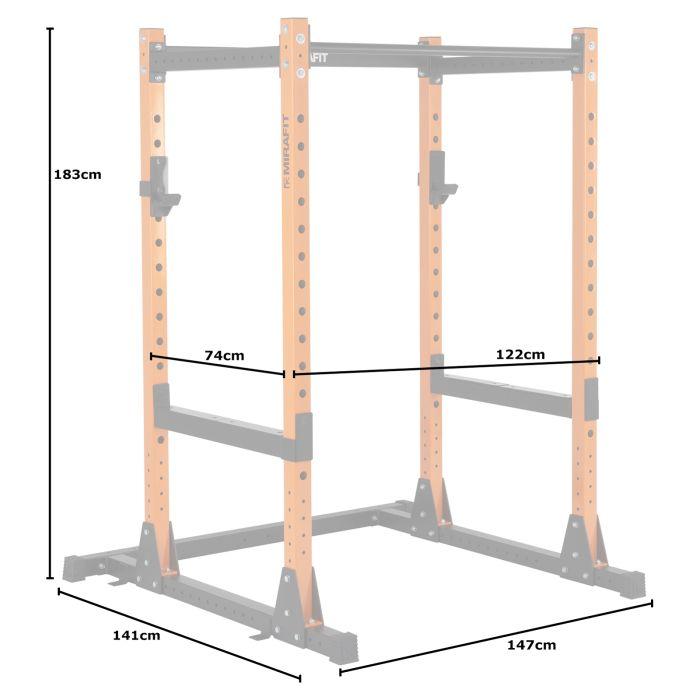

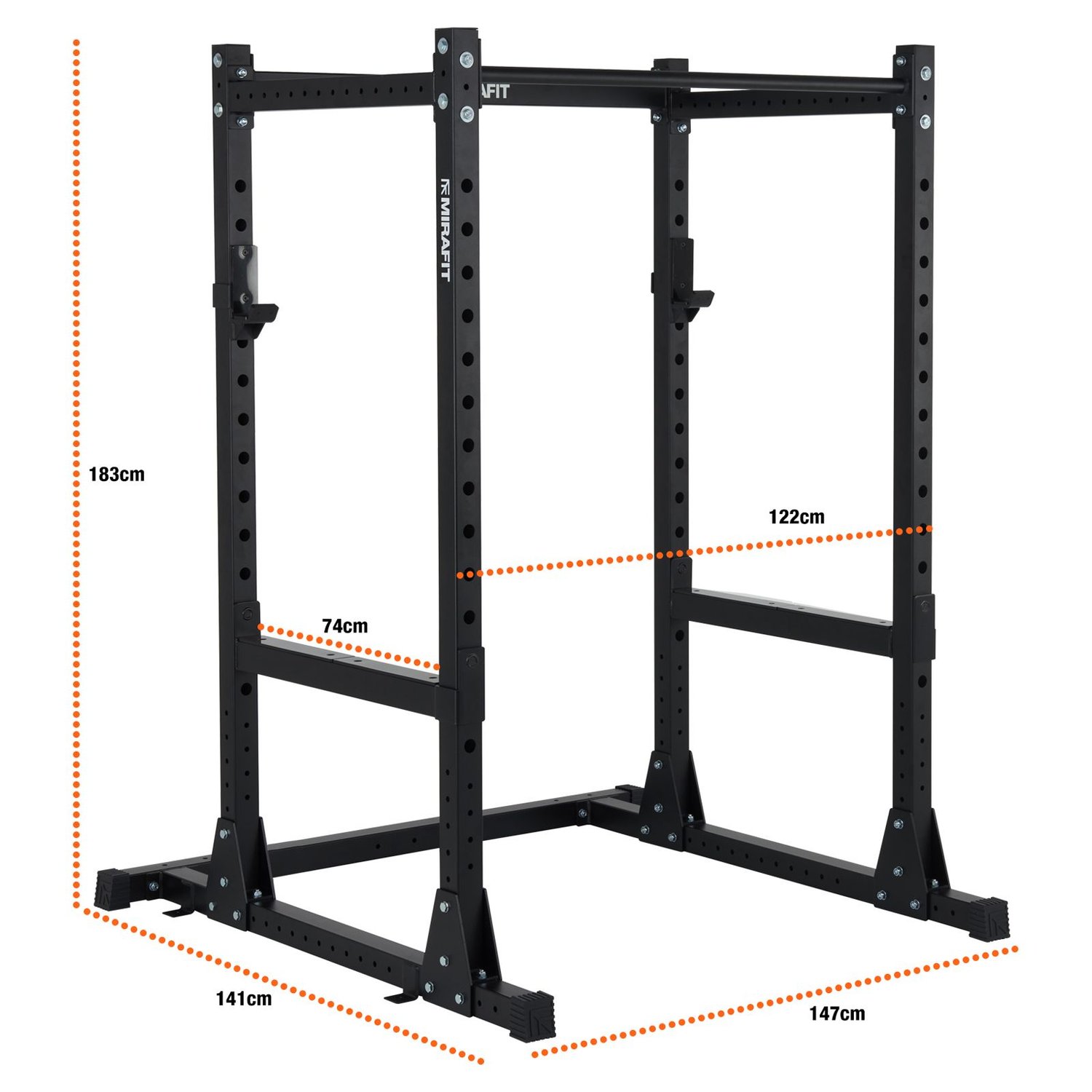

Specification:

Total Height: 183cm
Total Width: 147cm (122cm to outside of uprights)
Total Depth: 141cm
Internal Depth: 74cm
Frame: 60mm X 60mm
Net weight: 80kg / 176lbs
Max load: 350kg

How usable is the M200S given the shorter height?

This depends on the height of the user and the way the rack is setup
The height to the underside of the rear cross bar is 171cm and the height to the underside of the pull up bar is 173cm

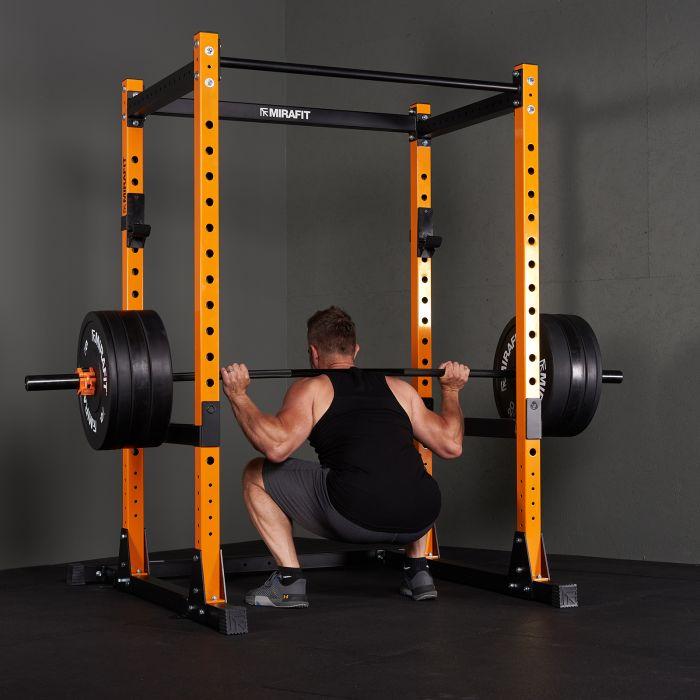

For taller users this can cause issues with pullups and upright exercises such as squats. In particular with squats there is the consideration of how to rack the bar without hitting your head. Consider these options:
Option 1 - You can increase clearance under the pull up bar to approximately 180cm by buying the optional multi-grip pull up bar available here (this does not change the overall height of the rack)
Option 2 - The pull up bar can be fitted slightly further back in the cage to create some more room at the front. Combine option 1 and 2 for an even greater impact
Option 3 - The pull up bar can be left out entirely. With this setup we recommend a max load of 280kg

What attachments are available?

Click here to view the full range of attachments for the M200 rack
Note: Cable pulley system is not compatible with this rack
View our M2 Rack attachment compatibility guide

Delivery & Assembly

This product is delivered in 3 boxes
The courier will often not deliver all of the boxes at the same time. Please wait at least 48 hours for the other boxes to arrive before contacting us
Assembly instructions are included
Please note: tools required for assembly are not included but are available here
During assembly pay special attention to the rear base bar which has two sets of holes. Ensure you follow the assembly diagrams to use the correct set of holes otherwise this will cause alignment issues. The spare holes are in place to accommodate optional weight storage poles.
