M4 Half Racks with Storage

Mirafit M4 Half Racks with Central Storage

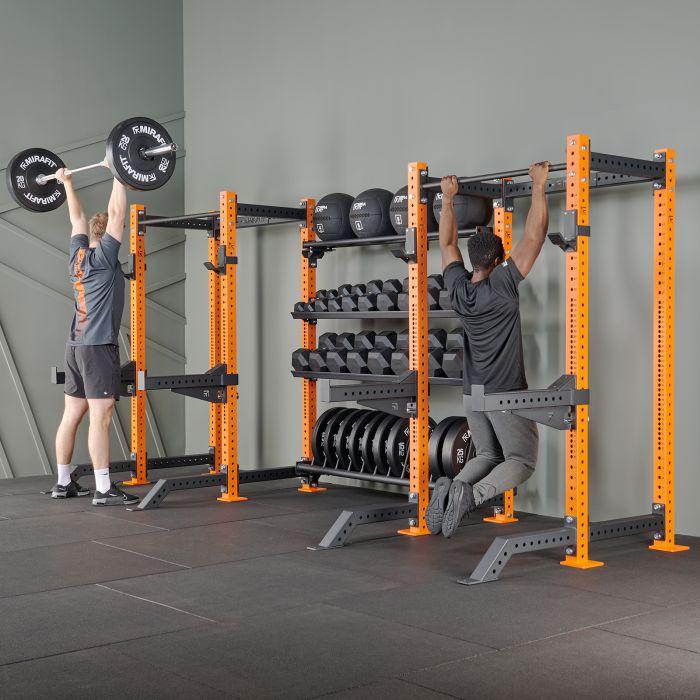

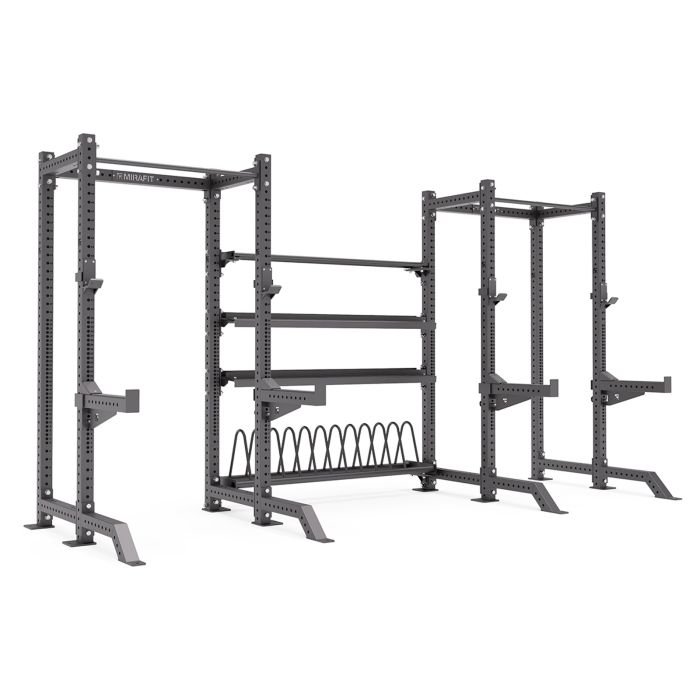

Two half power racks connected by free weight and accessory storage shelves
Fantastic commercial grade solution, suitable for gyms, clubs and personal training studios
Available in a choice of height and shelf configurations
Rack comes in 205cm, 230cm, or 255cm height

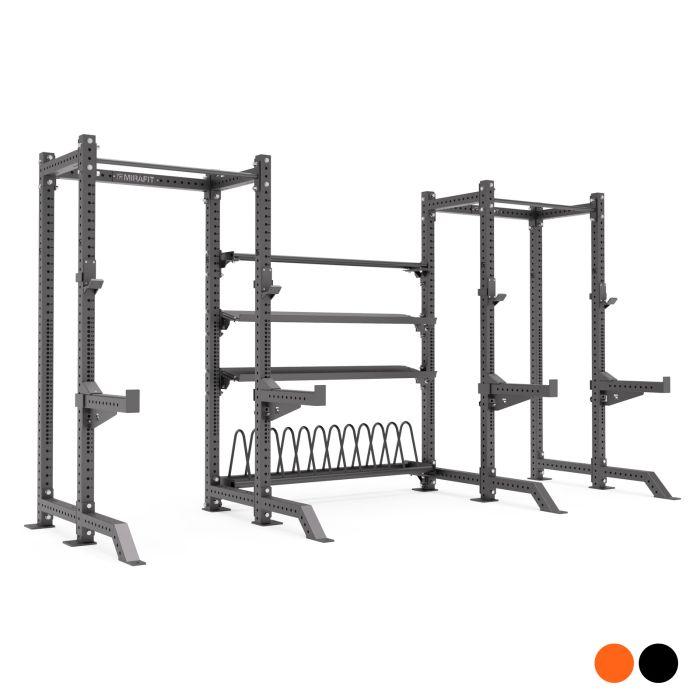

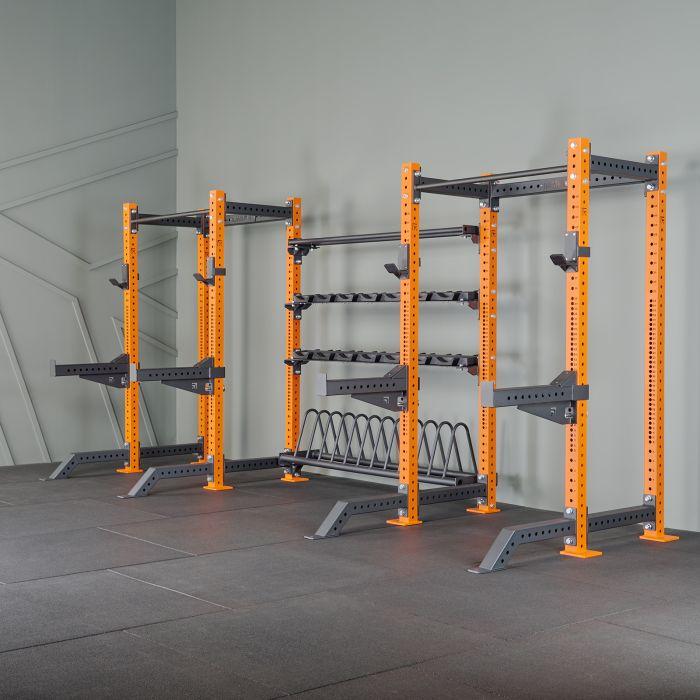

Rack uprights are available in black or orange powder coated finish

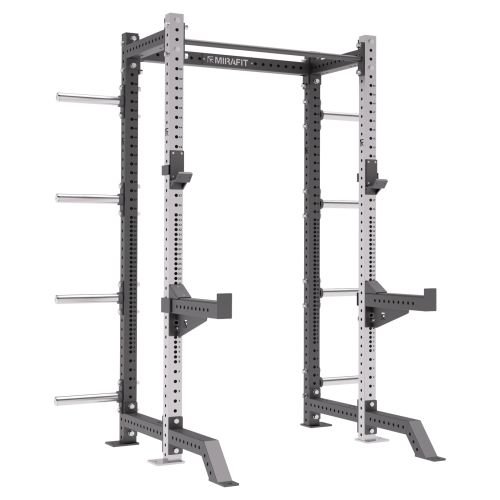

Front uprights also available in stainless steel option

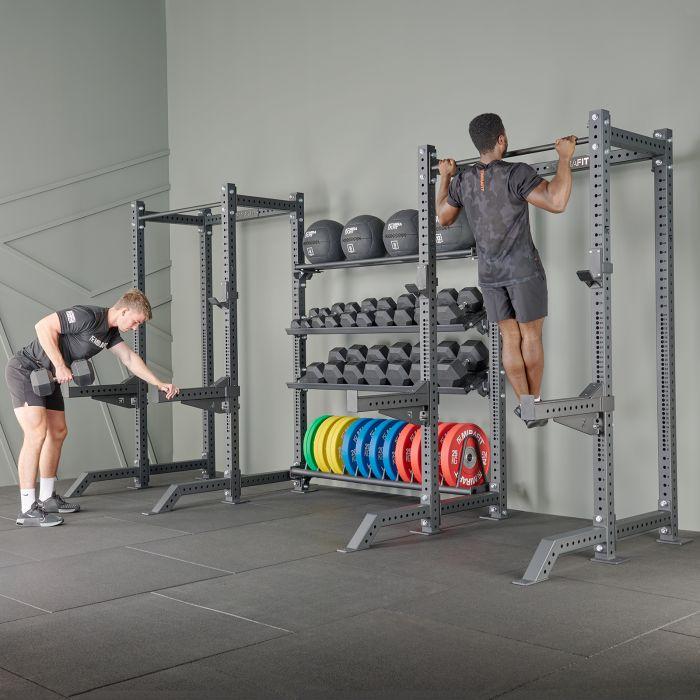

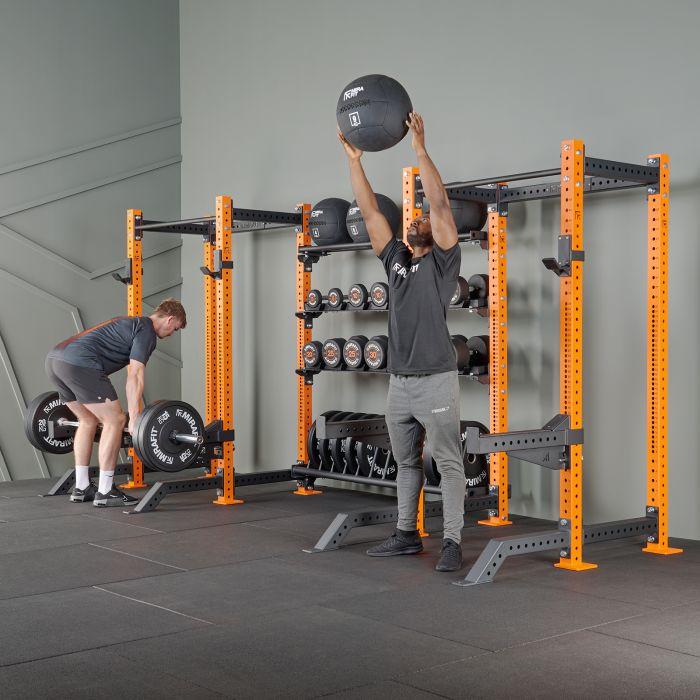

Double rack system allows multiple people to exercise at once
Both racks include safety spotters, j-cups and pull up bars
Choice of shelves to suit either hex or round dumbbells

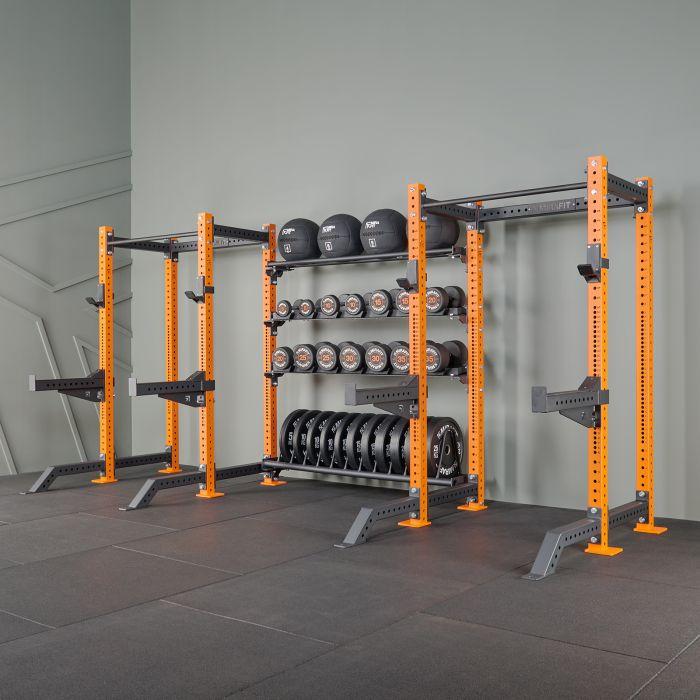

Config 1 includes one toaster rack, two round dumbbell shelves and one rail shelf

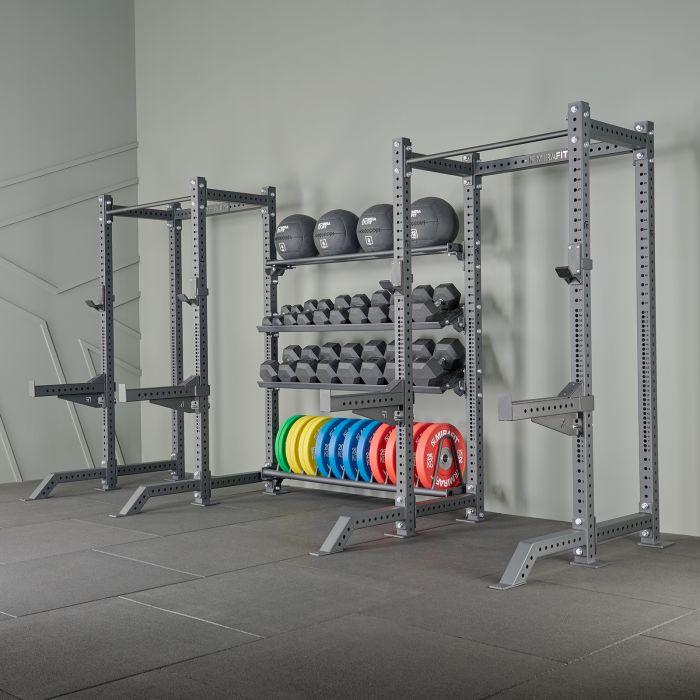

Config 2 includes one toaster rack, two hex dumbbell shelves and one rail shelf

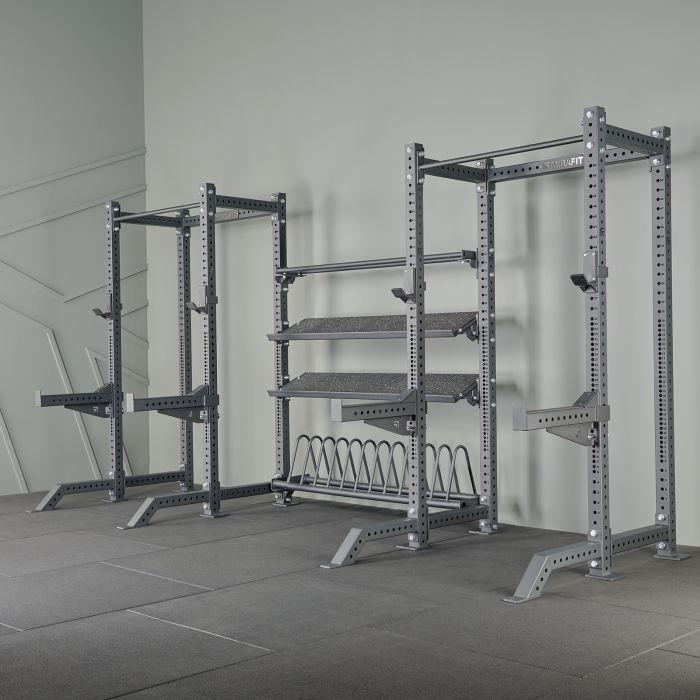

Config 3 includes one flat/kettlebell shelf, two hex dumbbell shelves and one rail shelf
Config 4 includes one flat/kettlebell shelf, two round dumbbell shelves and one rail shelf

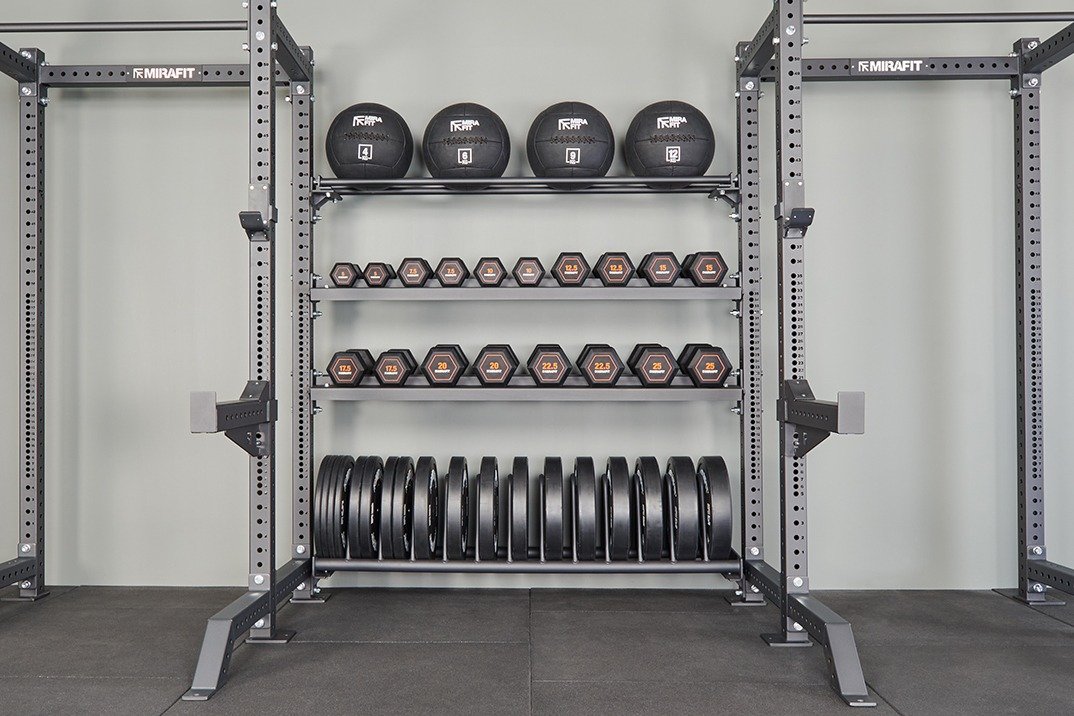

Space saving double bay design with central storage promotes an organised and tidy workout space
Compatible with the Mirafit M4 attachment range
Includes front stabiliser bars with holes for resistance band pegs
West side hole spacing with 1 inch spacing through bench press area and 2 inch spacing throughout
75mm x 75mm x 3mm steel frame with power coated finish
Heavy duty 10mm thick connection plates

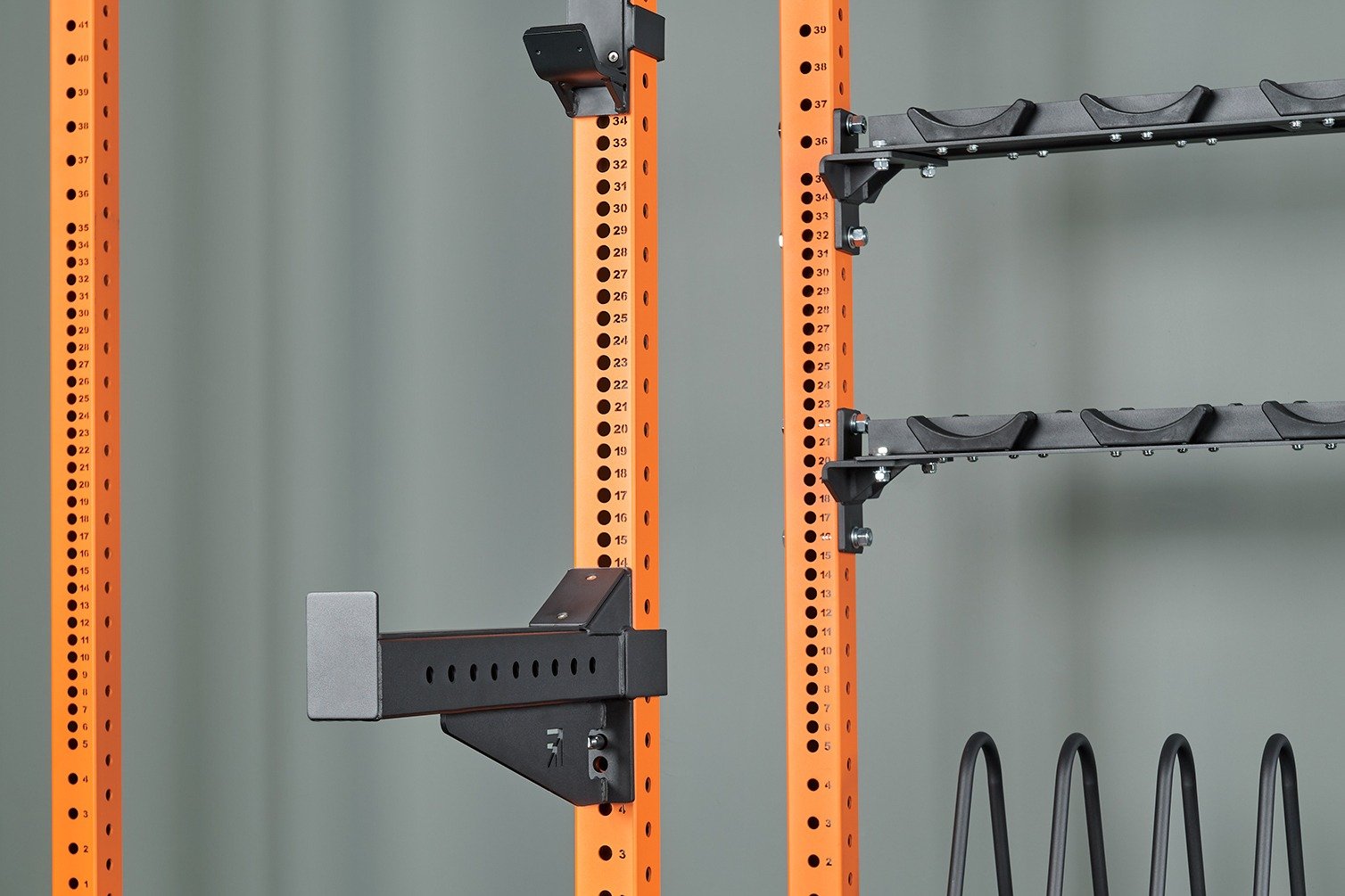

Laser cut numbers on rack uprights for easy adjustment
32mm pull up bar without knurling
Grade 8.8 M16 bolts throughout
17.5mm hole size is compatible with a range of M4 rack attachments
Heavy duty foot plates which are pre-drilled with 13mm holes for bolting down (floor bolts not included)
Specifications:

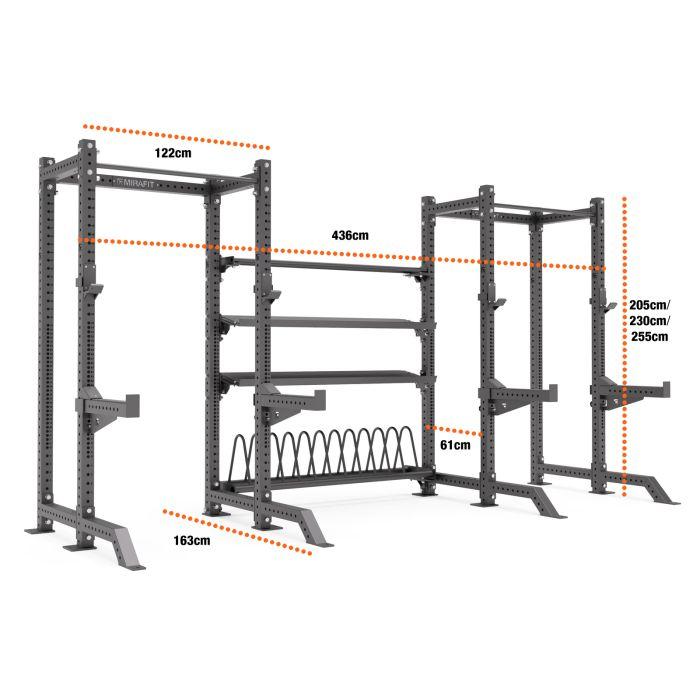

Rack Measurements
- Total width: 436cm (allow an additional 1m each side for bars and loading/unloading weights)
- Each rack width: 122cm
- Total depth: 163cm
- Internal depth: 61cm
- Height: 205/230/255cm
Rail Shelf
- For medicine balls, sandbags, wall balls and other accessories
- 178cm width
- 26cm depth
- 80kg max weight capacity
Round Dumbbell Shelf (with saddles)
- 5 degree angle for easy racking/unracking
- Each dumbbell slot can support up to 60kg dumbbell
- 178cm width
- 27cm depth
- 7 dumbbells
- 400kg max weight capacity
Hex Dumbbell Shelf
- Installs at an angle for easy dumbbell access
- Central ridge to stop dumbbells moving
- Note: due to the small head size, for dumbbells under 5kg, the handle will rest on the central lip of the shelf, rather than the dumbbell head resting on shelf
- 178cm width
- 38cm depth
- 350kg max weight capacity
Flat Shelf (for kettlebells or gym accessories)
- Installs flat for kettlebells and other accessories
- Rubber pad protects equipment from scratches
- 178cm width
- 31cm depth
- 200kg max weight capacity
Toast Style Weight Plate Rack
- Designed to accommodate bumper plates or similar diameter weight plates
- Note: this shelf must be installed at the bottom
- 178cm width
- 38cm depth
- 13 plate slots
- 96mm wide slots
- 400kg max weight capacity
View our M4 Rack attachment compatibility guide
