Mirafit M4 Freestanding Rig
Upgrade your gym with the Mirafit M4 Freestanding Rig. Available in two, four, or six station configurations with the ability to add on additional bays. This rig will allow multiple people to exercise at once and is compatible with our M4 attachments
In stock
Only %1 left
SKU
777281462
From
£649.95
UK Delivery £4.95. Finance Available Over £2,000.
- Mirafit M4 Freestanding Rigs
- Available in black or orange
- Available in 230cm or 255cm heights
- Great for creating spaces where multiple users and groups can train simultaneously
- Suitable for a variety of workouts including pull-ups, squats, deadlifts, presses and more
- Compatible with all M4 components which can be found here, allowing the rigs to be adapted to different needs
- Heavy duty 75 x 75 x 3mm steel box section with 10mm connection plates
- Includes two pairs of J-cups per bay. These feature nylon liners to protect the rack and your barbells

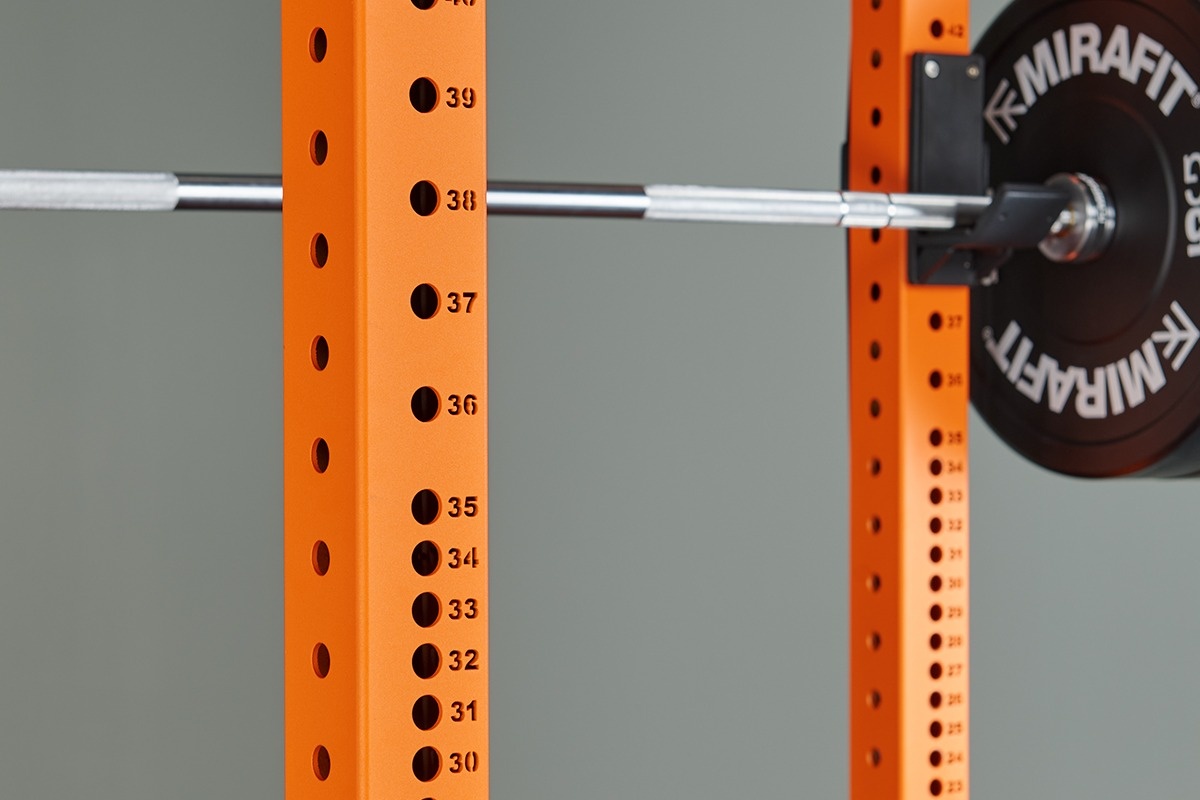

- West side hole spacing enables a more precise height for spotters and bar rests with 1 inch spacing through the bench press area and 2 inch throughout - great for users of any stature
- Laser cut numbers on the front and back of each upright make it easy to select the perfect height for attachments

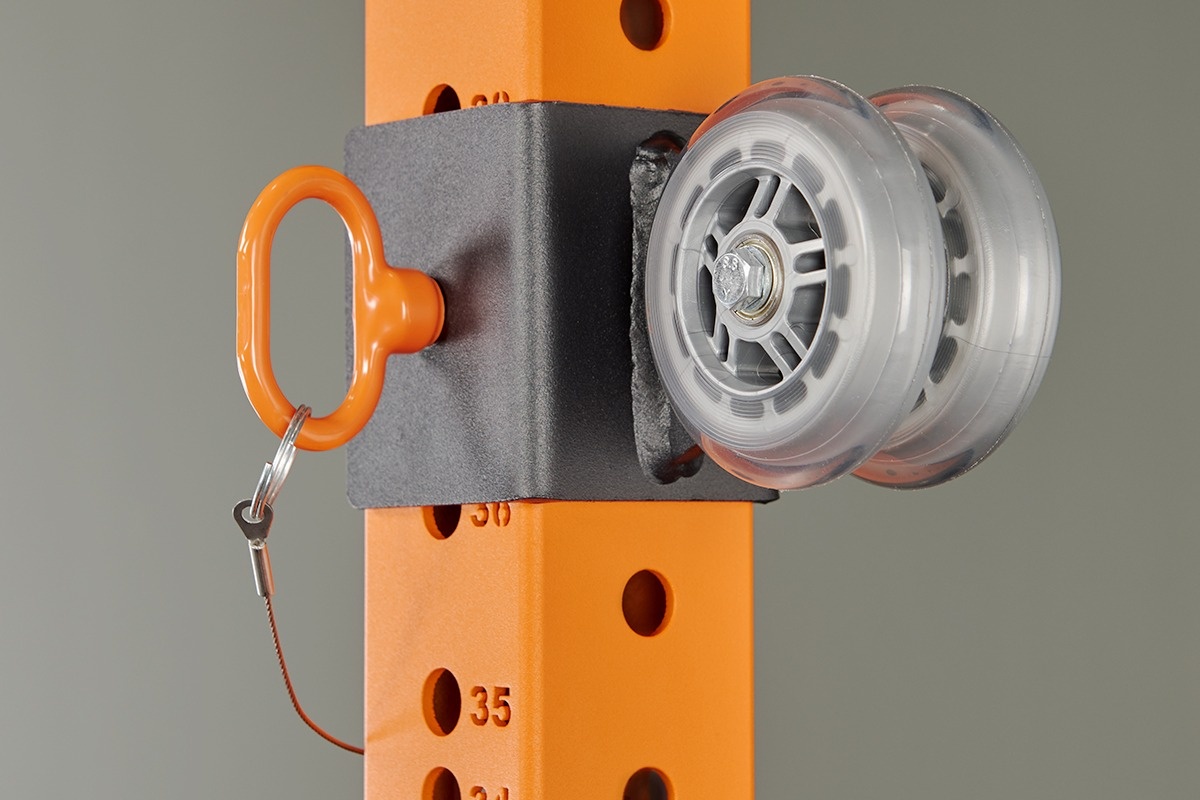

- 17.5mm hole size is compatible with a full range of M4 power rack attachments
- Heavy duty foot plates with bolt down design
- Grade 8.8 M16 hardware throughout

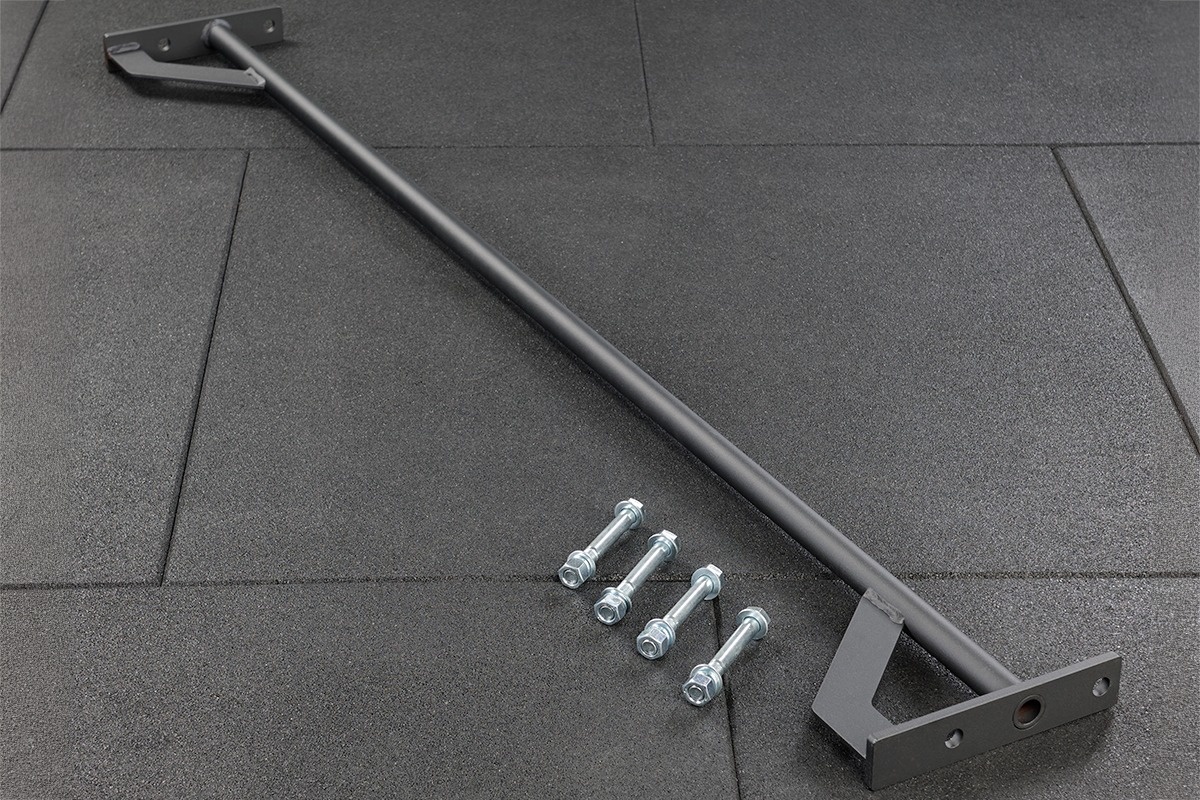

- Pull-up bars are also suitable for muscle ups
- Pick from one, two, or three bay configurations, with two workout stations per bay
- Add as many additional bays as required
- Configuration footprints and details:
-

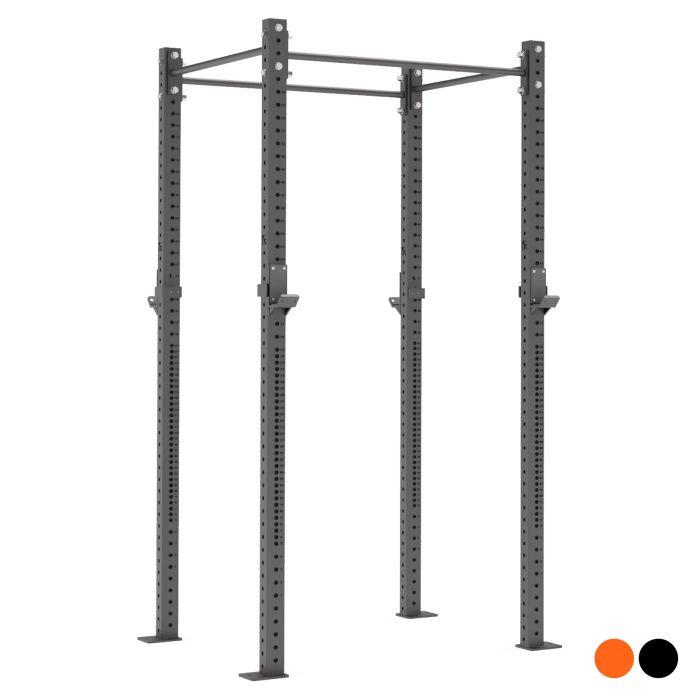

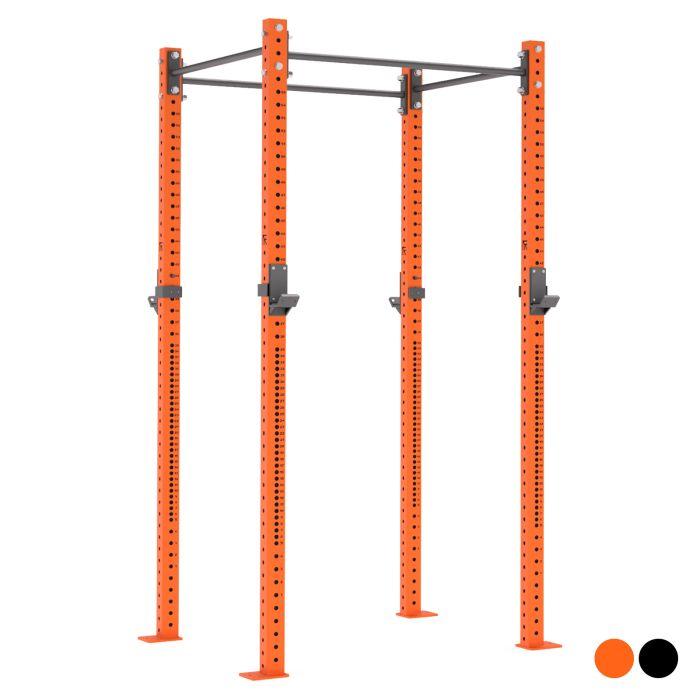

1 Bay (2 Station):
- Width: 136cm (from outside of foot plates)
- Depth: 130cm (from outside of foot plates)
- Height: 230/255cm
- Minimum space requirements: 3.5m x 5.5m (W x D)
- Has four pull-up bars
-

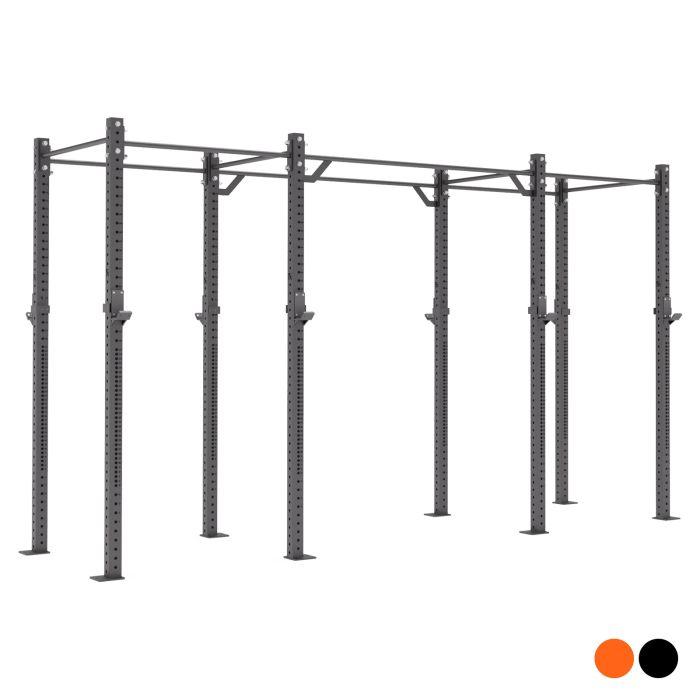

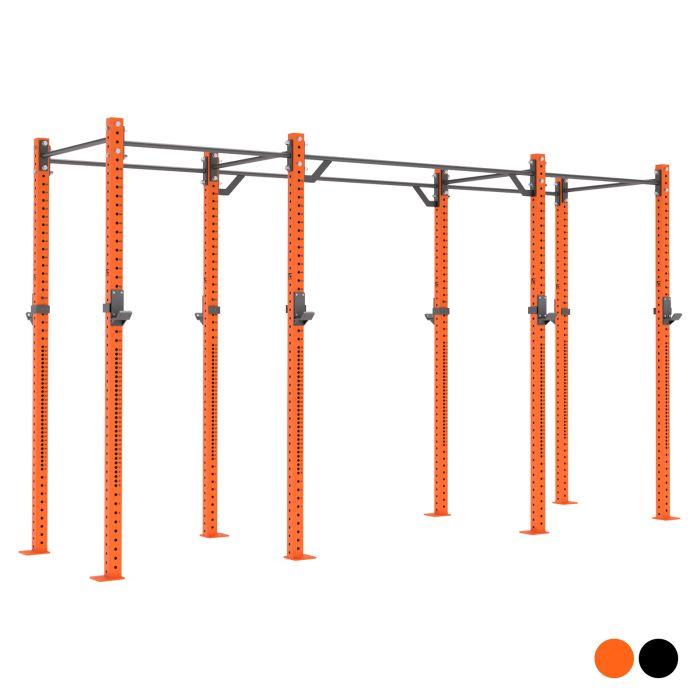

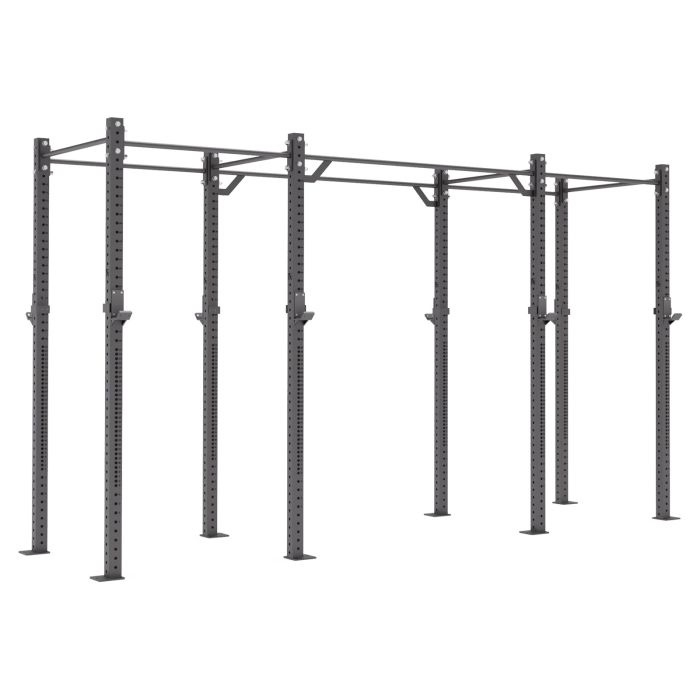

2 Bay (4 Station)
- Width: 436cm (from outside of foot plates)
- Depth: 130cm (from outside of foot plates)
- Height: 230/255cm
- Minimum space requirements: 6.5m x 5.5m (W x D)
- Has ten pull-up bars in total
-

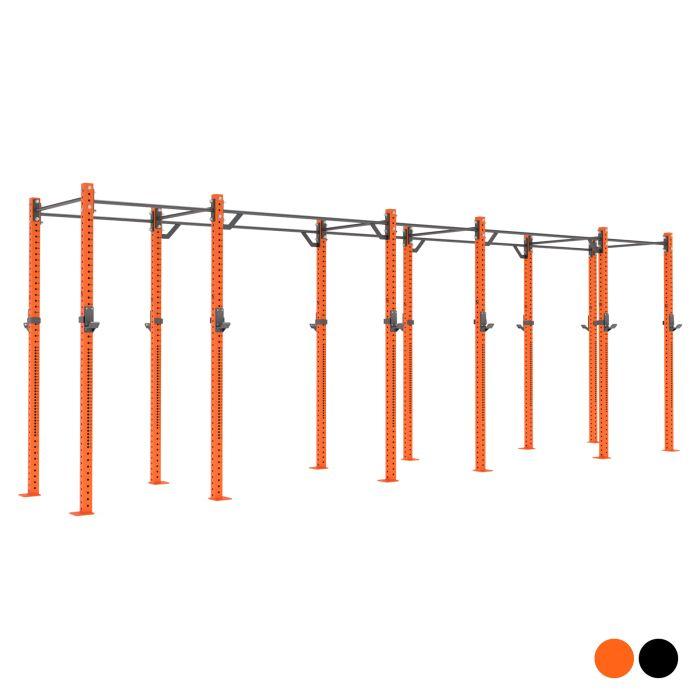

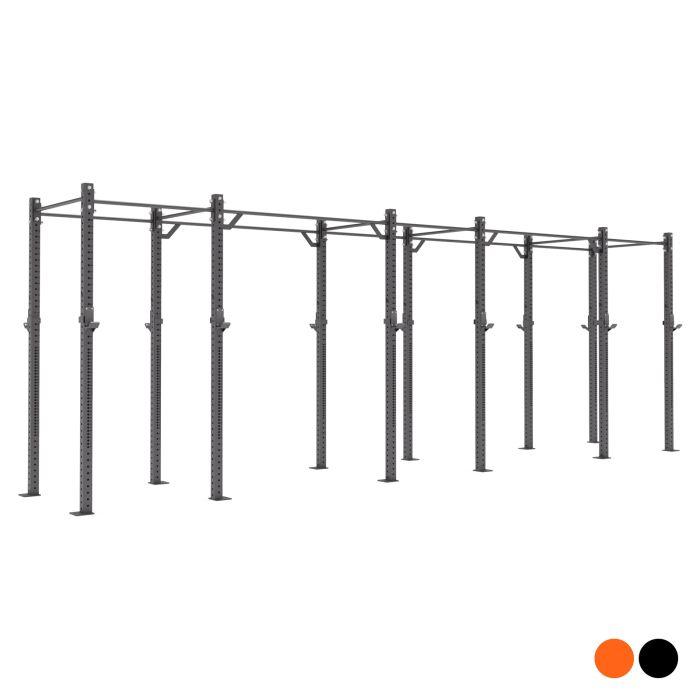

3 Bay (6 Station)
- Width: 736cm (from outside of foot plates)
- Depth: 130cm (from outside of foot plates)
- Height: 230/255cm
- Minimum space requirements: 9.5m x 5.5m (W x D)
- Has sixteen pull-up bars in total
-

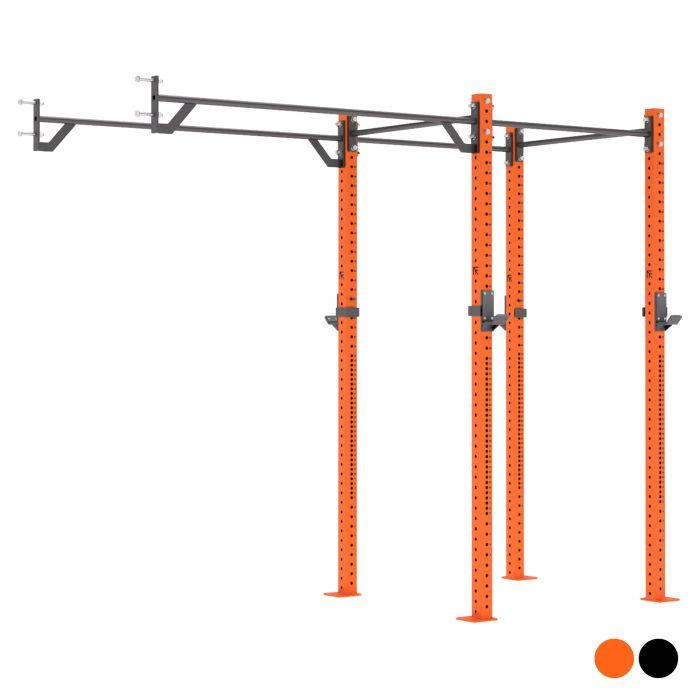

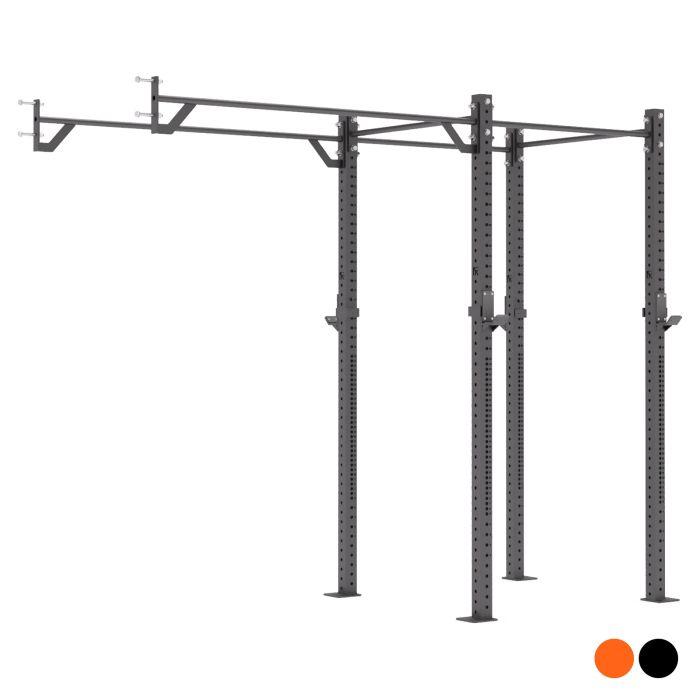

Additional Bay:
- Width: 307cm
- Depth: 148cm
- Height: 230/255cm
- Minimum Space Requirements: 4m x 5.5m (W x D)
- Has six pull-up-bars
-
Important Information
- The M4 rigs must be bolted down before use
- The foot plates are pre-drilled with 13mm holes, but floor fixings are NOT included and will vary depending on your floor type
- If in doubt, please consult a builder in relation to your floor type and the best method of securing
-
Delivery and Assembly:
- The product is delivered in multiple boxes
- The courier may not deliver all the boxes at the same time. Please wait at least 48 hours for the other boxes to arrive before contacting us
- Assembly instructions are not included, please download them here
- Please note: 24mm spanner set required for assembly is not included but is available here
This product is suitable for use in home, light commercial or full commercial gyms.
