Mirafit M4 Wall Mounted Rigs
Available in 230cm or 255cm heights
Great for creating spaces where multiple users and groups can train simultaneously
Choice of black or orange powder coated finish
Suitable for a variety of workouts including pull-ups, squats, deadlifts, presses and more
Compatible with most M4 components, allowing the rigs to be adapted to different needs. For a full list of compatible components, please click here
Heavy duty 75 x 75 x 3mm steel box section with 10mm connection plates
Includes one pair of J-cups per bay. These feature nylon liners to protect the rack and your barbells
West side hole spacing enables a more precise height for spotters and bar rests with 1 inch spacing through the bench press area and 2 inch throughout - great for users of any stature
Laser cut numbers on the front and back of each upright make it easy to select the perfect height for attachments
17.5mm hole size is compatible with a range of M4 power rack attachments
Heavy duty foot plates with bolt down design
Grade 8.8 M16 hardware throughout
Pull-up bars are also suitable for muscle ups

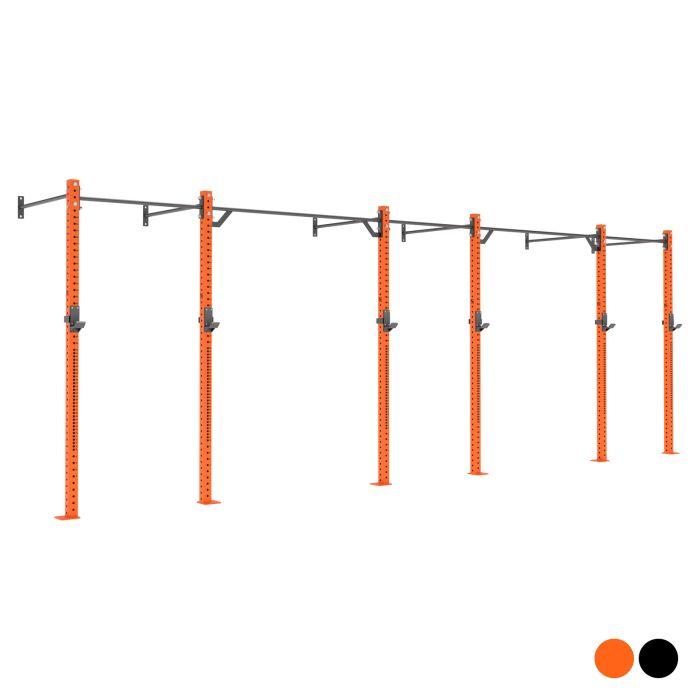

Pick from one, two, or three bay configurations, with one workout station per bay
Each bay creates two additional workout stations
Configuration Footprints and Details:

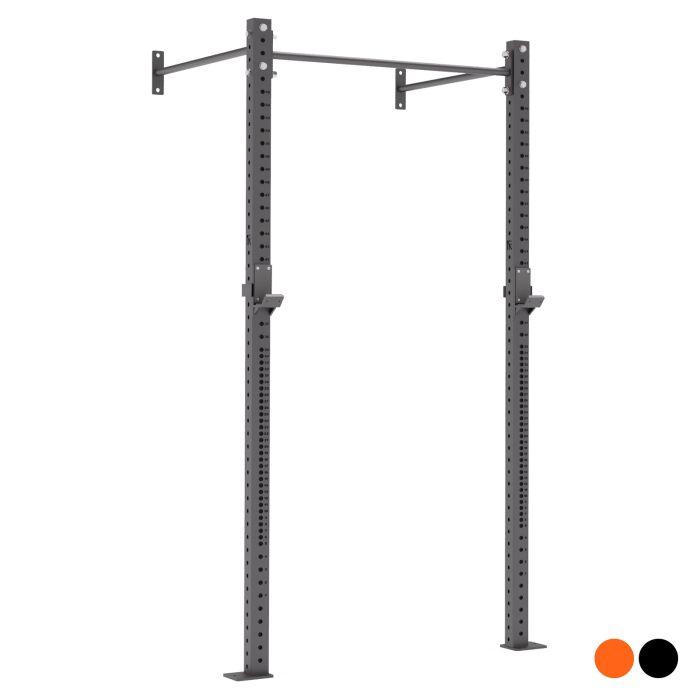

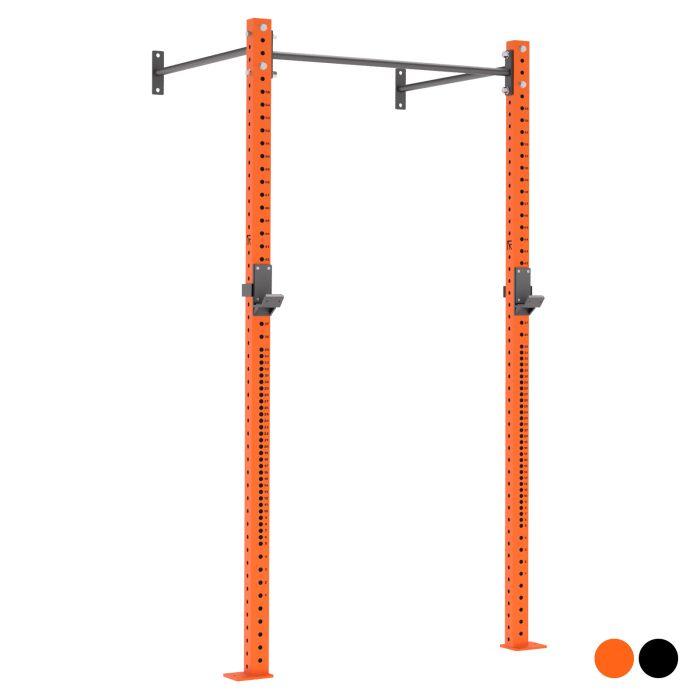

- 1 Bay:
  - Width: 136cm (from outside of foot plates)
  - Depth: 118cm (from footplate to wall)
  - Height: 230/255cm
  - Minimum space requirements: 3.5m x 4.2m (W x D)
  - Has three pull-up bars

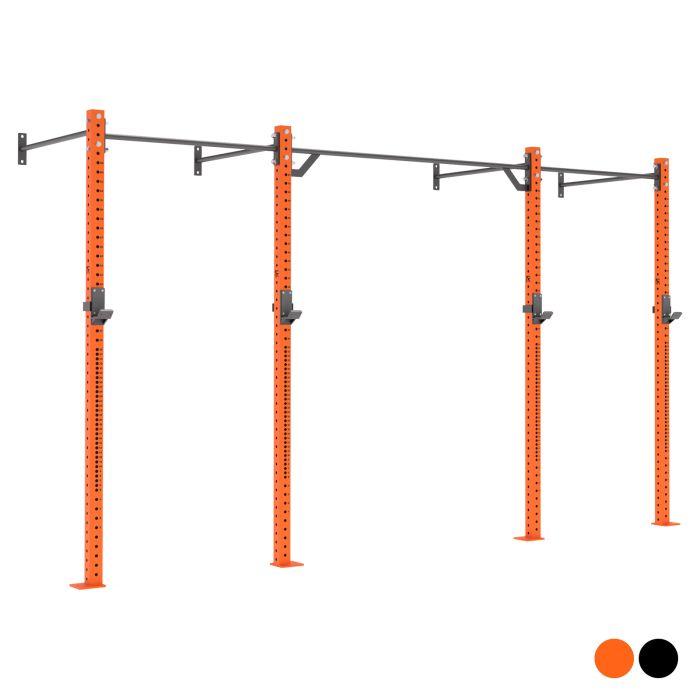

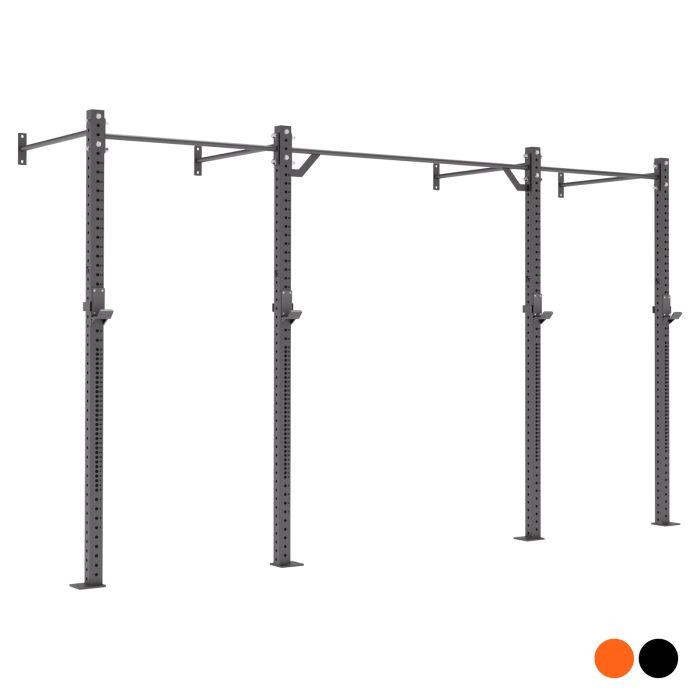

- 2 Bays:
  - Width: 436cm (from outside of foot plates)
  - Depth: 118cm (from foot plate to wall)
  - Height: 230cm / 255cm
  - Minimum space requirements: 6.5m x 4.2m (W x D)
  - Has seven pull-up bars in total

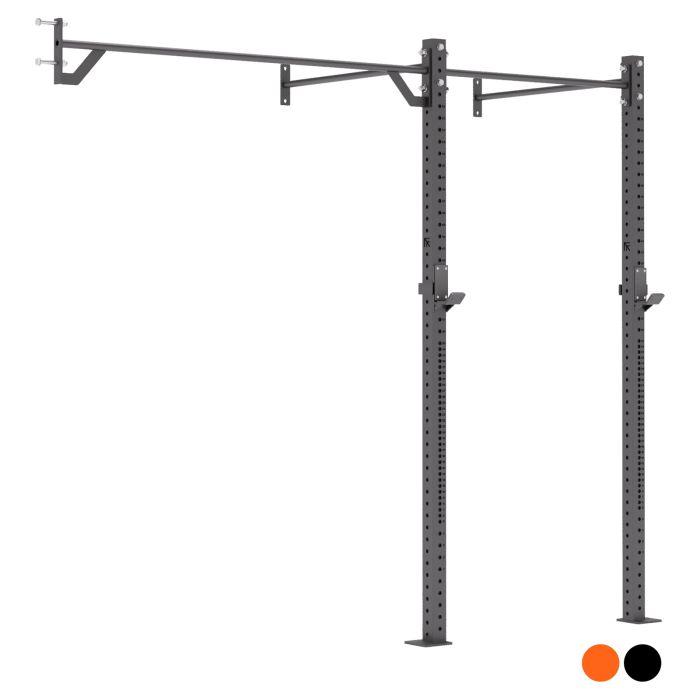

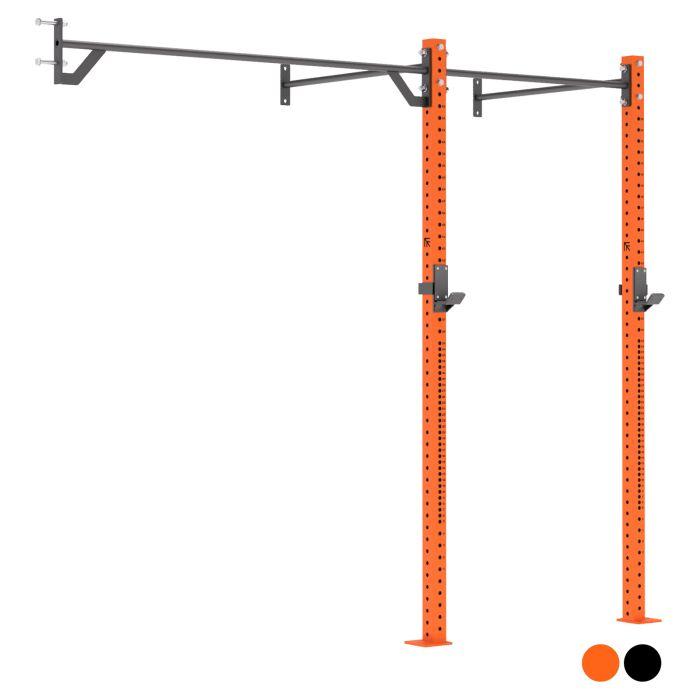

- Each additional bay adds 300cm width
Important Information:
- It is essential that the wall and floor this product is mounted to are strong enough to withstand the forces that could occur during use and that suitable fixings are used
- Wall and floor fixings are not included as the fixings required will vary according to the wall and floor type
- The wall bars are pre-drilled with 17.5mm diameter holes
- The foot plates are pre-drilled with 13mm diameter holes
- We recommend consulting with a builder or surveyor prior to installation
- Please note spotter arms and other attachments will add additional stresses to the wall. You must ensure a builder or surveyor confirms the wall is strong enough prior to use
- It is recommended to have three people on hand for assembly & installation of this product
Delivery and Assembly:
- The product is delivered in multiple boxes
- The courier may not deliver all the boxes at the same time. Please weight at least 48 hours for the other boxes to arrive before contacting us
- Assembly instructions are not included, please download them here
- Please note: 24mm spanner set is required for assembly and is not included but is available here

This product is designed for use in home, light commercial and full commercial gyms.

Mirafit M4 Wall Mounted Rig

Make the most of your gym space with this Mirafit M4 Wall Mounted Rig. Available in one or two bay configurations with the ability to add on as many additional bays as required. Allows multiple people to exercise while saving floor space in the gym
